SKU: NKXR45-EU

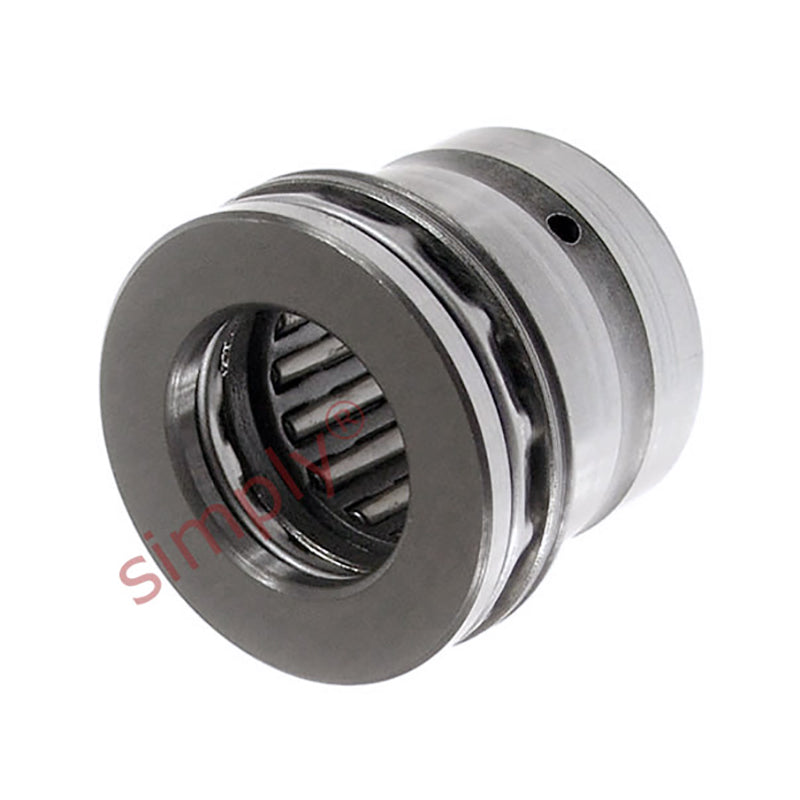

NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
Regular price
€94,54
ex VAT
Regular price
Sale price
€94,54
ex VAT
In stock
Price Break
10+
€84,14
19+
€79,41
29+
€78,47
39+
€77,52
49+
€76,58
74+
€75,63
99+
€70,91
199+
€69,96
249+
€69,01
499+
€68,07
999+
€66,18
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 32mm

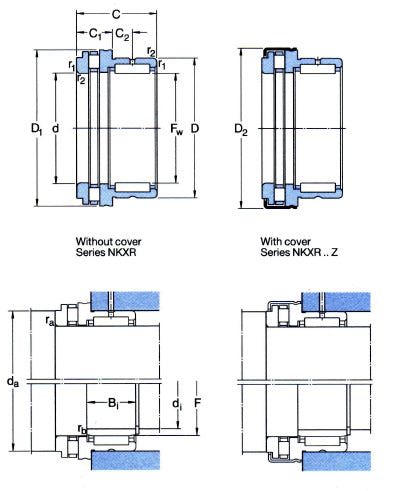

Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 32mm |
| Dynamic load | 28100 N |
| Static load | 57000 N |
| Axial dynamic load | 45000 N |
| Axial static load | 153000 N |
| Fatigue load limit radial Pu | 7100 N |
| Fatigue load limit axial Pu | 15300 N |
| Min load factor A | 1.9 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 9mm |
| d | 45mm |
| D1 | 65mm |
| r1r2 min | 0.6mm |
| da | 60.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 40mm |
| F | 45mm |
| B1 | 20mm |
| Inner ring | IR40x45x20 |
| Weight | 240 g |
