SKU: NKXR40-MB

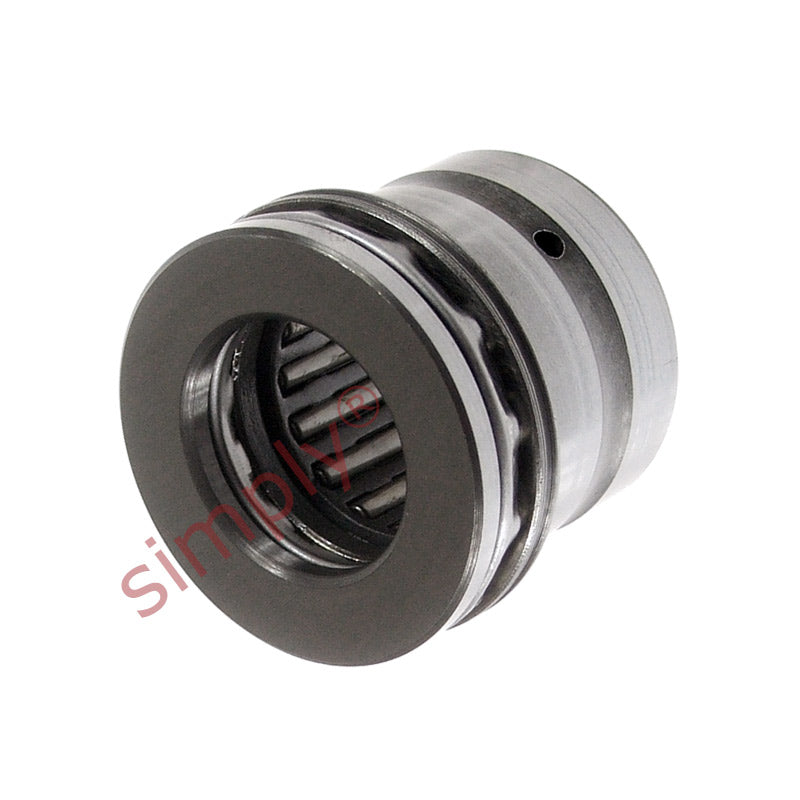

Major Brand NKXR40 Needle Roller Thrust Bearing without Cover 40x52x32mm

Name: Major Brand NKXR40 Needle Roller Thrust Bearing without Cover 40x52x32mm
Brand: Major Brand
SKU: NKXR40-MB
Price: 185.37 EUR
Availability: InStock

€185,37 ex VAT

Sale Sold out

In stock

Price Break

10+ €141,18

19+ €133,25

29+ €131,67

39+ €130,08

49+ €128,49

74+ €126,91

99+ €118,97

199+ €117,39

249+ €115,80

499+ €114,22

999+ €111,04

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually.
Benefits: High thrust loading, separable, easily mounted

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 52mm
Width:: 32mm

Technical

Fw	40mm
D	52mm
C	32mm
Dynamic load	26400 N
Static load	51000 N
Axial dynamic load	43000 N
Axial static load	137000 N
Fatigue load limit radial Pu	6300 N
Fatigue load limit axial Pu	13700 N
Min load factor A	1.5
Speed in grease	1700 rpm
Speed in oil	2400 rpm
C1	13mm
C2	10mm
d	40
