SKU: NKXR35Z-EU

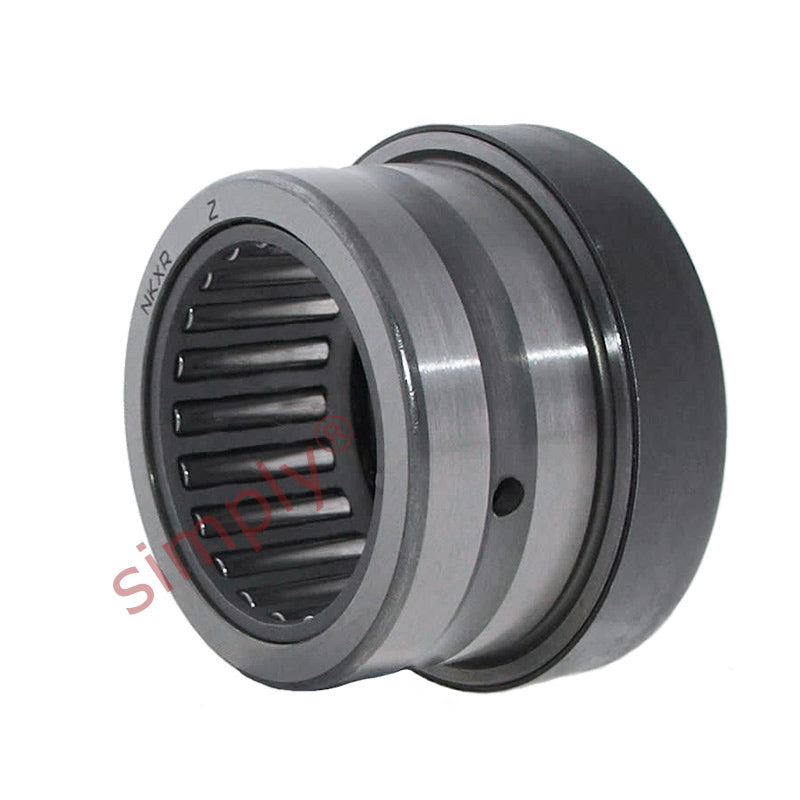

NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm

Name: NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm
Brand: Gen
SKU: NKXR35Z-EU
Price: 30.84 EUR
Availability: InStock

€30,84 ex VAT

Sale Sold out

In stock

Price Break

10+ €23,49

19+ €22,17

29+ €21,90

39+ €21,64

49+ €21,38

74+ €21,11

99+ €19,79

199+ €19,53

249+ €19,26

499+ €19,00

999+ €18,47

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 35mm
Outside Diameter:: 47mm
Width:: 30mm
Seals / Shields:: Metal Shields

Technical

Fw	35mm
D	47mm
C	30mm
Dynamic load	24600 N
Static load	45000 N
Axial dynamic load	29000 N
Axial static load	93000 N
Fatigue load limit radial Pu	5600 N
Fatigue load limit axial Pu	9150 N
Min load factor A	0.69
Speed in grease	1900 rpm
Speed in oil	2800 rpm
C1	12mm
C2	9mm
d	35mm
D2	53.2mm
r1r2 min	0.6mm
da	47.7mm
ra max	0.6mm
rb max	0.3mm
di	30mm
F	35mm
B1	20mm
Inner ring	IR30x35x20
Weight	170 g
