SKU: NKXR35-MB

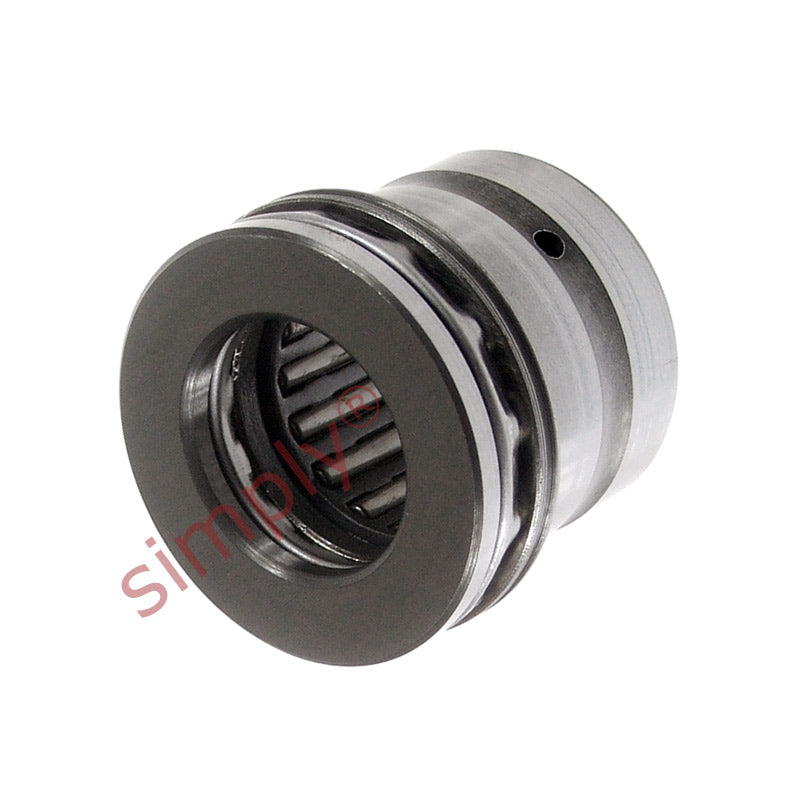

Major Brand NKXR35 Needle Roller Thrust Bearing without Cover 35x47x30mm
Major Brand NKXR35 Needle Roller Thrust Bearing without Cover 35x47x30mm
Regular price
€107,35
ex VAT
Regular price
Sale price
€107,35
ex VAT
In stock
Price Break
10+
€81,75
19+
€77,16
29+
€76,24
39+
€75,32
49+
€74,40
74+
€73,49
99+
€68,89
199+
€67,97
249+
€67,06
499+
€66,14
999+
€64,30
Description
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 47mm |
| C | 30mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Axial dynamic load | 29000 N |
| Axial static load | 93000 N |
| Fatigue load limit radial Pu | 5600 N |
| Fatigue load limit axial Pu | 9150 N |
| Min load factor A | 0.69 |
| Speed in grease | 1900 rpm |
| Speed in oil | 2800 rpm |
| C1 | 12mm |
| C2 | 9mm |
| d | 35 |
