SKU: NKXR30-EU

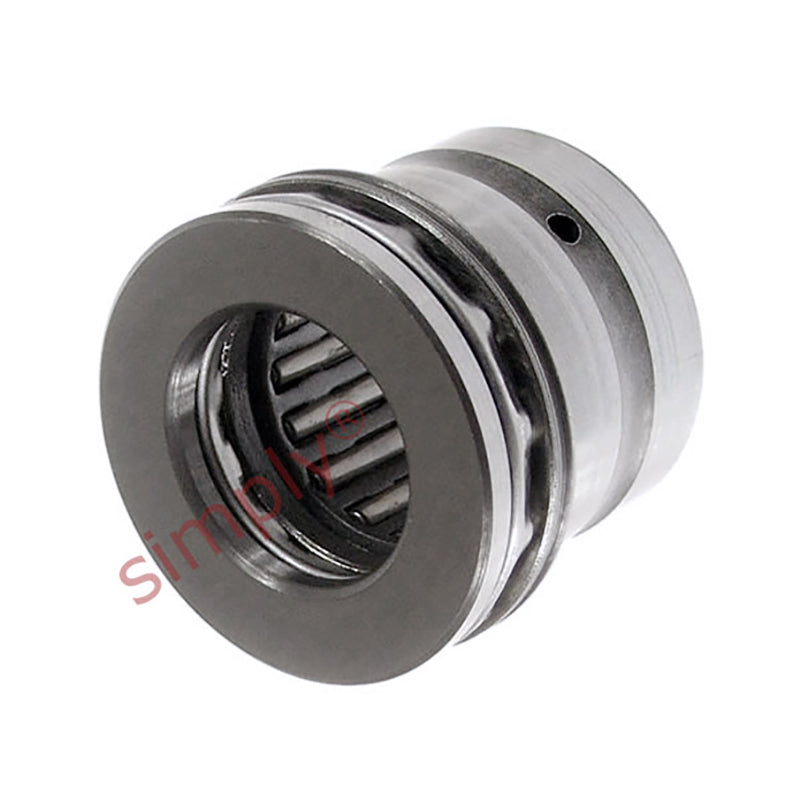

NKXR30 Budget Needle Roller Thrust Bearing without Cover 30x42x30mm
NKXR30 Budget Needle Roller Thrust Bearing without Cover 30x42x30mm
Regular price
€56,90
ex VAT
Regular price
Sale price
€56,90
ex VAT
In stock
Price Break
10+
€43,33
19+
€40,90
29+
€40,41
39+
€39,92
49+
€39,44
74+
€38,95
99+
€36,52
199+
€36,03
249+
€35,54
499+
€35,05
999+
€34,08
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Dynamic load | 22900 N |
| Static load | 39000 N |
| Axial dynamic load | 27000 N |
| Axial static load | 78000 N |
| Fatigue load limit radial Pu | 4800 N |
| Fatigue load limit axial Pu | 7650 N |
| Min load factor A | 0.49 |
| Speed in grease | 2000 rpm |
| Speed in oil | 3000 rpm |
| C1 | 11mm |
| C2 | 9.5mm |
| d | 30mm |
| D1 | 47mm |
| r1r2 min | 0.6mm |
| da | 42.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 25mm |
| F | 30mm |
| B1 | 20mm |
| Inner ring | IR25x30x20 |
| Weight | 140 g |
