SKU: NKXR15Z-MB

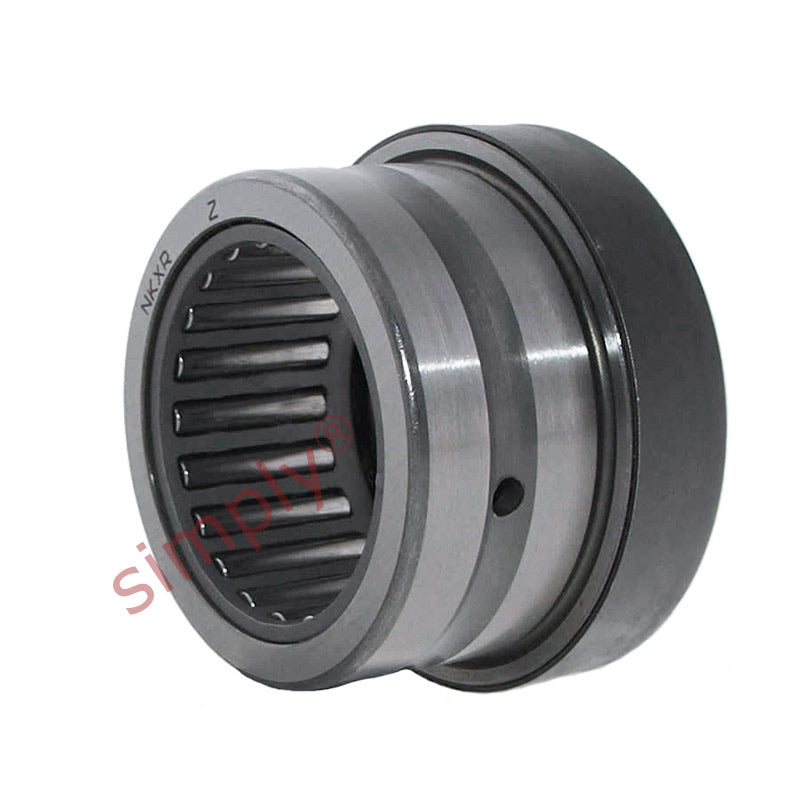

Major Brand NKXR15Z Needle Roller Thrust Bearing without Cover 15x24x23mm
Major Brand NKXR15Z Needle Roller Thrust Bearing without Cover 15x24x23mm
Regular price
€31,53
ex VAT
Regular price
Sale price
€31,53
ex VAT
In stock
Price Break
10+
€24,01
19+
€22,66
29+
€22,39
39+
€22,12
49+
€21,85
74+
€21,58
99+
€20,24
199+
€19,97
249+
€19,70
499+
€19,43
999+
€18,89
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 23mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 23mm |
| Dynamic load | 11200 N |
| Static load | 14000 N |
| Axial dynamic load | 11200 N |
| Axial static load | 27000 N |
| Fatigue load limit radial Pu | 1660 N |
| Fatigue load limit axial Pu | 2450 N |
| Min load factor A | 0.058 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 9mm |
| C2 | 6.5mm |
| d | 15 |
