SKU: NKIS35-MB

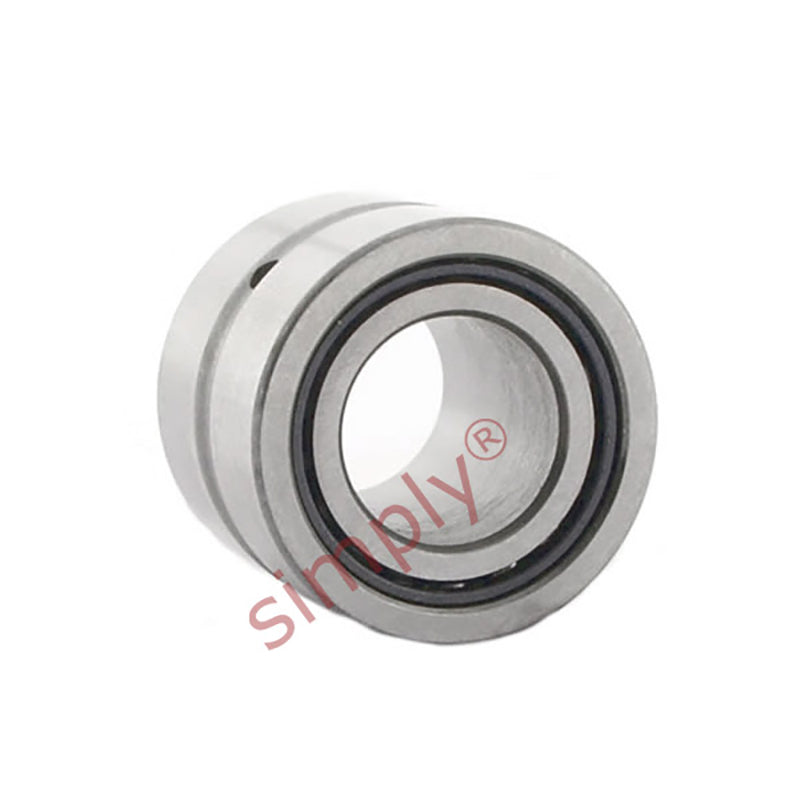

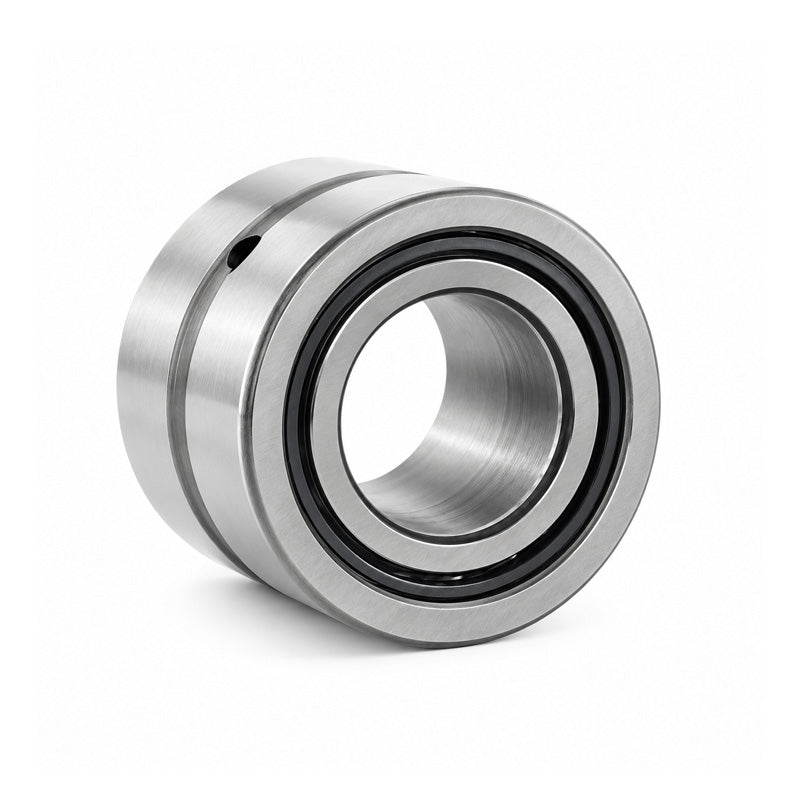

Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm

Name: Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm
Brand: Major Brand
SKU: NKIS35-MB
Price: 37.35 EUR
Availability: InStock

€37,35 ex VAT

Sale Sold out

In stock

Price Break

10+ €28,44

19+ €26,85

29+ €26,53

39+ €26,21

49+ €25,89

74+ €25,57

99+ €23,97

199+ €23,65

249+ €23,33

499+ €23,01

999+ €22,37

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 58mm
Width:: 22mm

Technical

d	35mm
D	58mm
B	22mm
Dynamic load	39100 N
Static load	61000 N
Fatigue load limit Pu	7800 N
Speed in grease	6300 rpm
Speed in oil	9000 rpm
F	43mm
r1r2	0.6mm
S (axial disp)	0.5mm
da min	39mm
Da max	54mm
ra max	0.6mm
