SKU: NKIB5902-EU

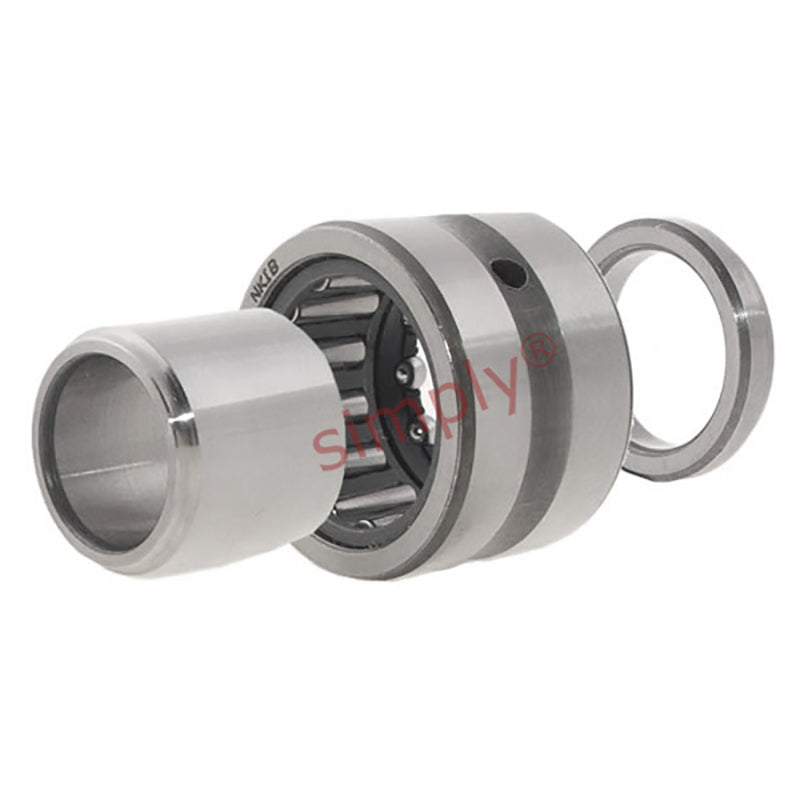

NKIB5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x20mm
NKIB5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x20mm
Regular price
€28,24
ex VAT
Regular price
Sale price
€28,24
ex VAT
In stock
Price Break
10+
€21,51
19+
€20,30
29+
€20,06
39+
€19,82
49+
€19,58
74+
€19,34
99+
€18,13
199+
€17,89
249+
€17,64
499+
€17,40
999+
€16,92
Share this product
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 20mm |
| C | 18mm |
| Radial dynamic load | 11400 N |
| Radial static load | 15600 N |
| Axial dynamic load | 2270 N |
| Axial static load | 2370 N |
| Fatigue load limit radial Pu | 1830 N |
| Fatigue load limit axial Pu | 99 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| r1r2 | 0.3mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Weight | 52 g |
