SKU: NKIA5914-EU

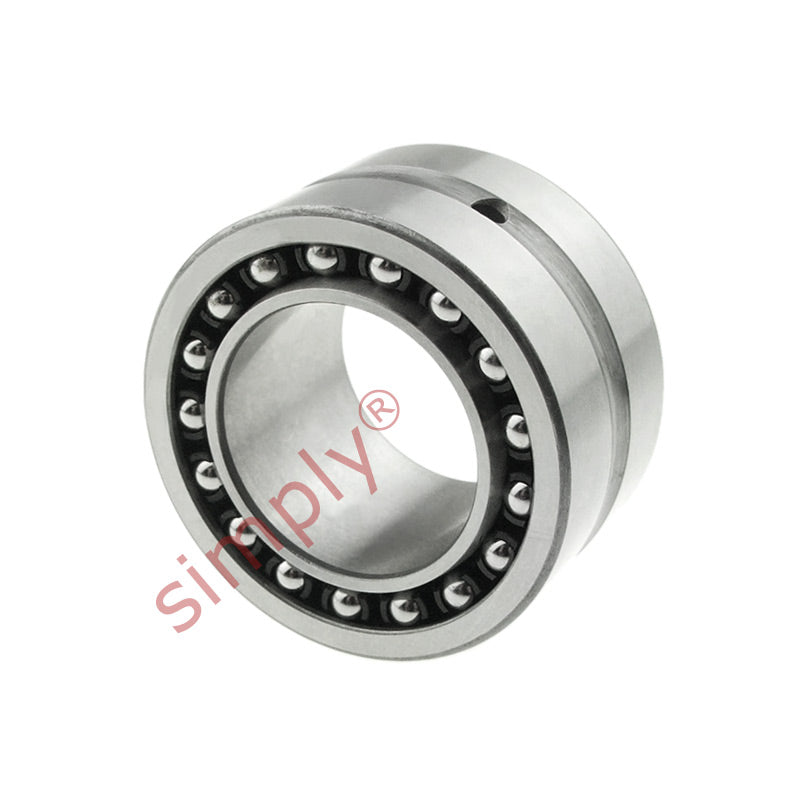

NKIA5914 Budget Needle Roller / Angular Contact Ball Bearing 70x100x40mm
NKIA5914 Budget Needle Roller / Angular Contact Ball Bearing 70x100x40mm
Regular price
€183,97
ex VAT
Regular price
Sale price
€183,97
ex VAT
In stock
Price Break
10+
€140,12
19+
€132,25
29+
€130,67
39+
€129,10
49+
€127,52
74+
€125,95
99+
€118,08
199+
€116,50
249+
€114,93
499+
€113,35
999+
€110,20
Share this product
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 100mm
- Width:
- 40mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 100mm |
| B | 40mm |
| Radial dynamic load | 84200 N |
| Radial static load | 163000 N |
| Axial dynamic load | 13200 N |
| Axial static load | 25000 N |
| Fatigue load limit radial Pu | 20800 N |
| Fatigue load limit axial Pu | 1050 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 5000 rpm |
| F | 80mm |
| r1r2 | 1mm |
| da min | 75mm |
| Da max | 95mm |
| ra max | 1mm |
| Weight | 980 g |
