SKU: NKIA5913-EU

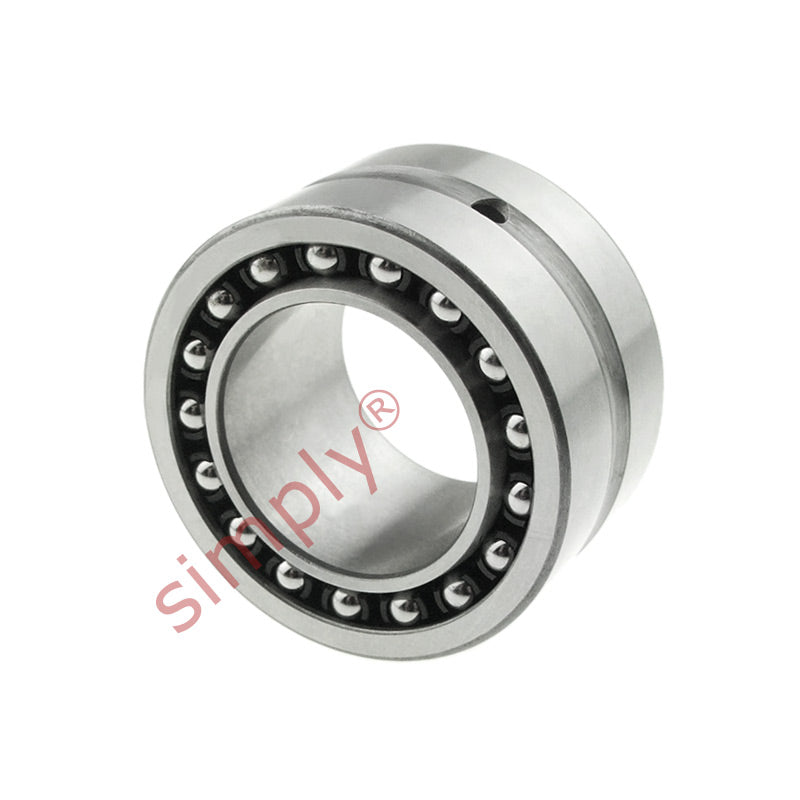

NKIA5913 Budget Needle Roller / Angular Contact Ball Bearing 65x90x34mm
NKIA5913 Budget Needle Roller / Angular Contact Ball Bearing 65x90x34mm
Regular price
€119,91
ex VAT
Regular price
Sale price
€119,91
ex VAT
In stock
Price Break
10+
€91,32
19+
€86,19
29+
€85,16
39+
€84,14
49+
€83,11
74+
€82,08
99+
€76,95
199+
€75,93
249+
€74,90
499+
€73,88
999+
€71,82
Share this product
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 34mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 34mm |
| Radial dynamic load | 60500 N |
| Radial static load | 118000 N |
| Axial dynamic load | 9960 N |
| Axial static load | 19200 N |
| Fatigue load limit radial Pu | 14600 N |
| Fatigue load limit axial Pu | 816 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 72mm |
| r1r2 | 1mm |
| da min | 70mm |
| Da max | 85mm |
| ra max | 1mm |
| Weight | 640 g |
