SKU: NKIA5905-EU

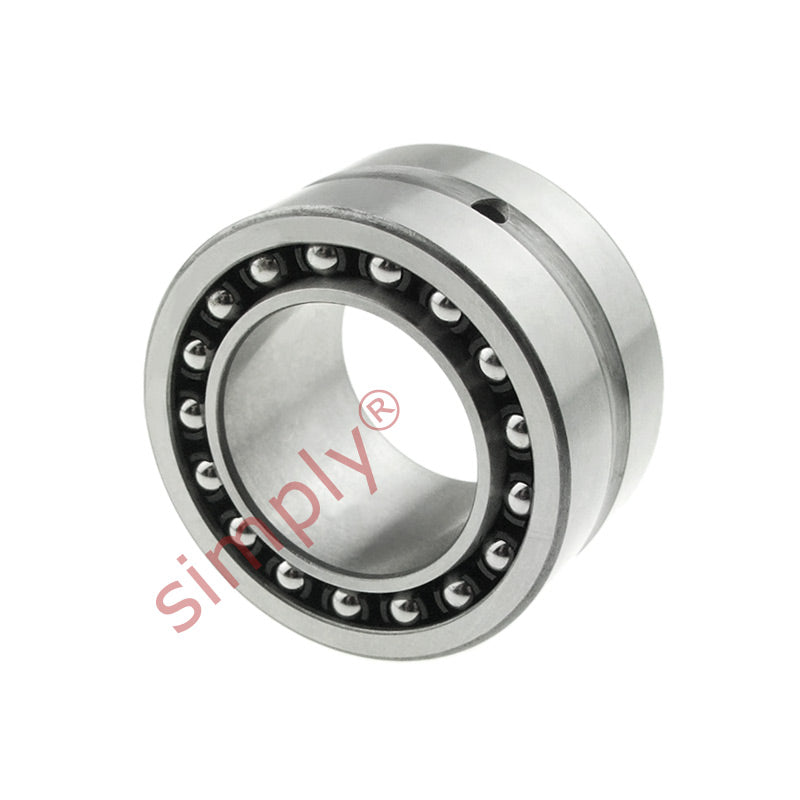

NKIA5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x23mm
NKIA5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x23mm
Regular price
€18,42
ex VAT
Regular price
Sale price
€18,42
ex VAT
In stock
Price Break
10+
€14,03
19+
€13,24
29+
€13,08
39+
€12,92
49+
€12,77
74+
€12,61
99+
€11,82
199+
€11,66
249+
€11,50
499+
€11,35
999+
€11,03
Share this product
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 23mm
Technical
Technical

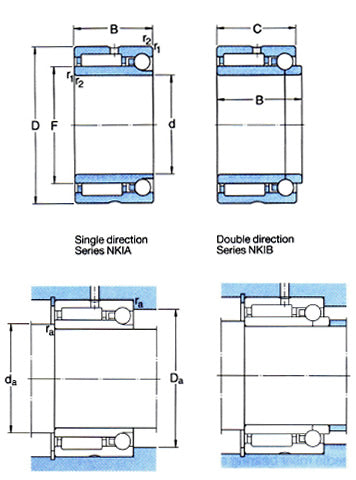

| d | 25mm |
|---|---|
| D | 42mm |
| B | 23mm |
| Radial dynamic load | 24200 N |
| Radial static load | 34500 N |
| Axial dynamic load | 4240 N |
| Axial static load | 5260 N |
| Fatigue load limit radial Pu | 4150 N |
| Fatigue load limit axial Pu | 224 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 30mm |
| r1r2 | 0.3mm |
| da min | 27mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Weight | 130 g |
