SKU: NKIA5903-MB

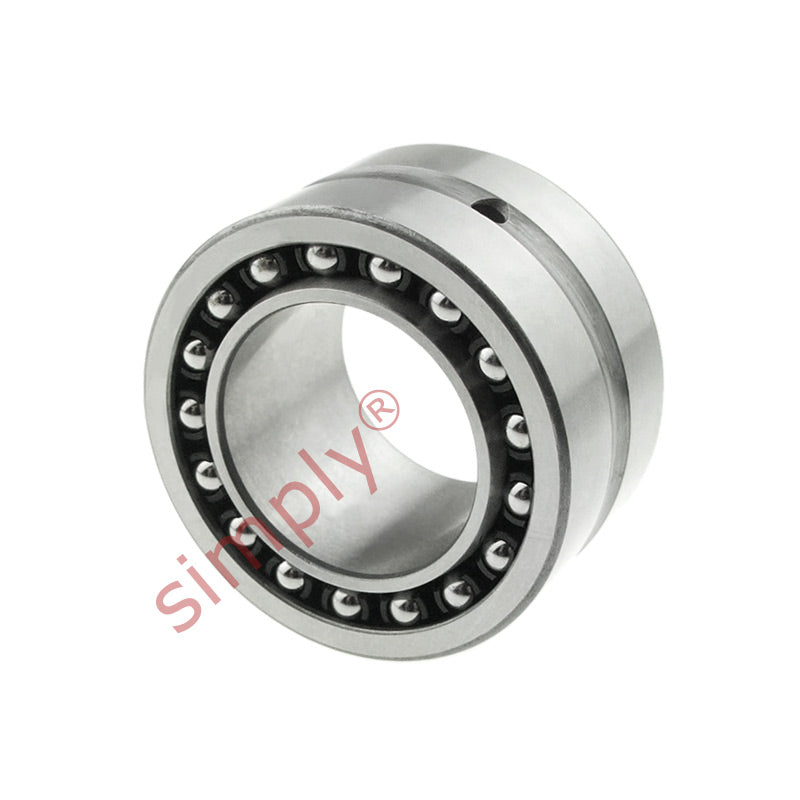

Major Brand NKIA5903 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Major Brand NKIA5903 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Regular price
€36,06
ex VAT
Regular price
Sale price
€36,06
ex VAT
In stock
Price Break
10+
€27,46
19+
€25,92
29+
€25,61
39+
€25,30
49+
€24,99
74+
€24,68
99+
€23,14
199+
€22,83
249+
€22,52
499+
€22,22
999+
€21,60
Share this product
Description
Description
Needle Roller / Angular Contact Combined : Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 18mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 18mm |
| Radial dynamic load | 11700 N |
| Radial static load | 17000 N |
| Axial dynamic load | 2240 N |
| Axial static load | 2740 N |
| Fatigue load limit radial Pu | 1960 N |
| Fatigue load limit axial Pu | 116 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| F | 22mm |
| r1r2 | 0.3mm |
| da min | 19mm |
| Da max | 28mm |
| ra max | 0.3mm |
