SKU: NKI65/35-MB

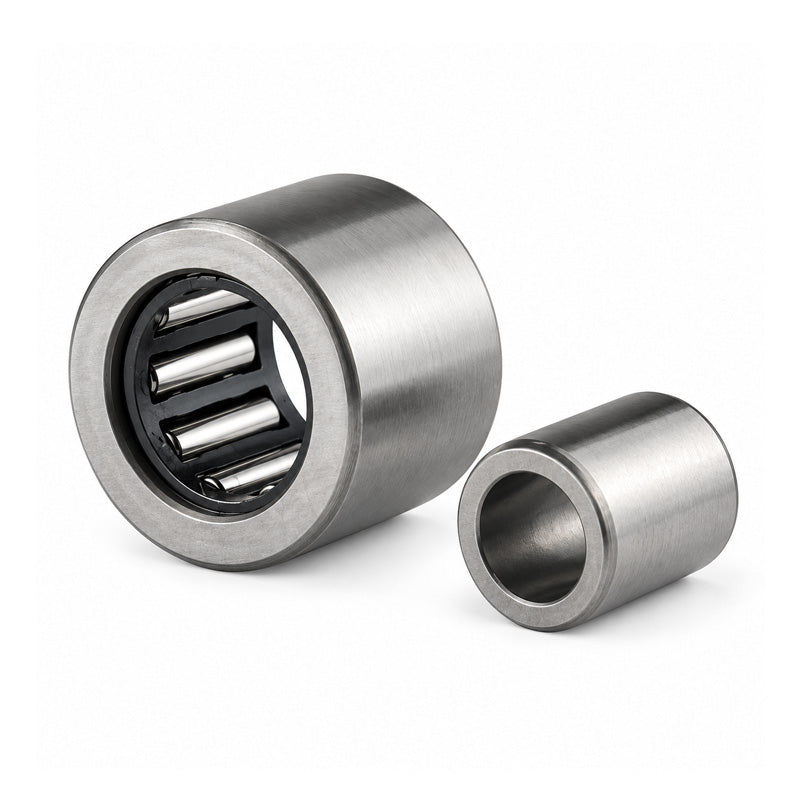

Major Brand NKI65/35 Needle Roller Bearing With Shaft Sleeve 65x90x35mm
Major Brand NKI65/35 Needle Roller Bearing With Shaft Sleeve 65x90x35mm
Regular price
€96,02
ex VAT
Regular price
Sale price
€96,02
ex VAT
In stock
Price Break
10+
€73,13
19+
€69,02
29+
€68,20
39+
€67,38
49+
€66,56
74+
€65,74
99+
€61,63
199+
€60,81
249+
€59,98
499+
€59,16
999+
€57,52
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 35mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 35mm |
| Dynamic load | 73700 N |
| Static load | 163000 N |
| Fatigue load limit Pu | 21600 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 73mm |
| r1r2 | 1mm |
| S (axial disp) | 1mm |
| da min | 70mm |
| Da max | 85mm |
| ra max | 1mm |
