SKU: NKI65/35-EU

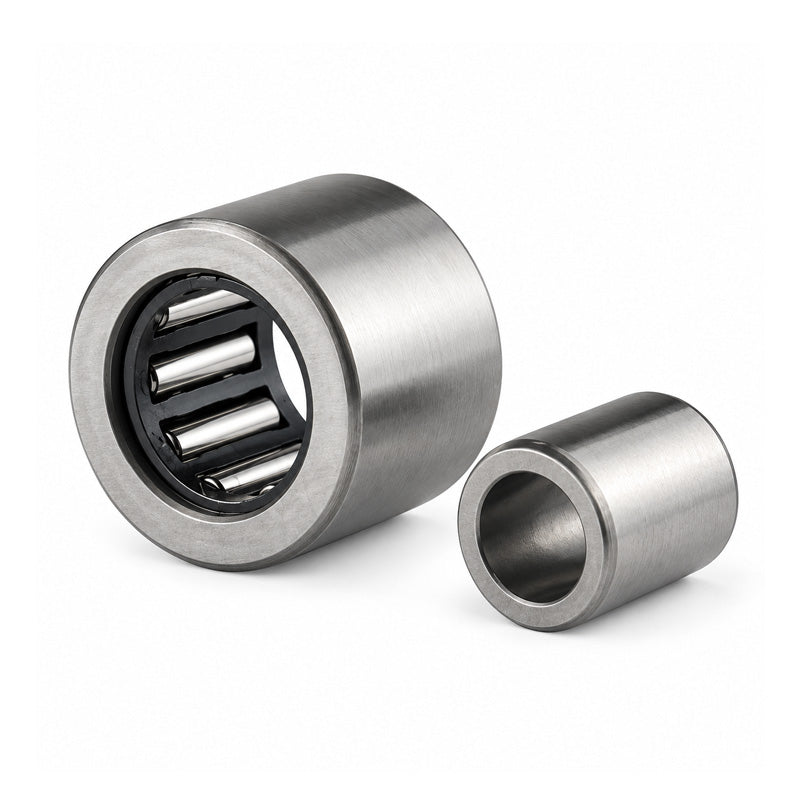

NKI65/35 Budget Needle Roller Bearing / Shaft Sleeve 65x90x35mm
NKI65/35 Budget Needle Roller Bearing / Shaft Sleeve 65x90x35mm
Regular price
€87,25
ex VAT
Regular price
Sale price
€87,25
ex VAT
In stock
Price Break
10+
€77,65
19+
€73,29
29+
€72,42
39+
€71,55
49+
€70,67
74+
€69,80
99+
€65,44
199+
€64,57
249+
€63,69
499+
€62,82
999+
€61,08
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 35mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 35mm |
| Dynamic load C | 73700 N |
| Static load Co | 163000 N |
| Fatigue load limit Pu | 21600 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 73mm |
| r1r2 | 1mm |
| S (axial disp) | 1mm |
| da min | 70mm |
| Da max | 85mm |
| ra max | 1mm |
