SKU: NKI60/35-MB

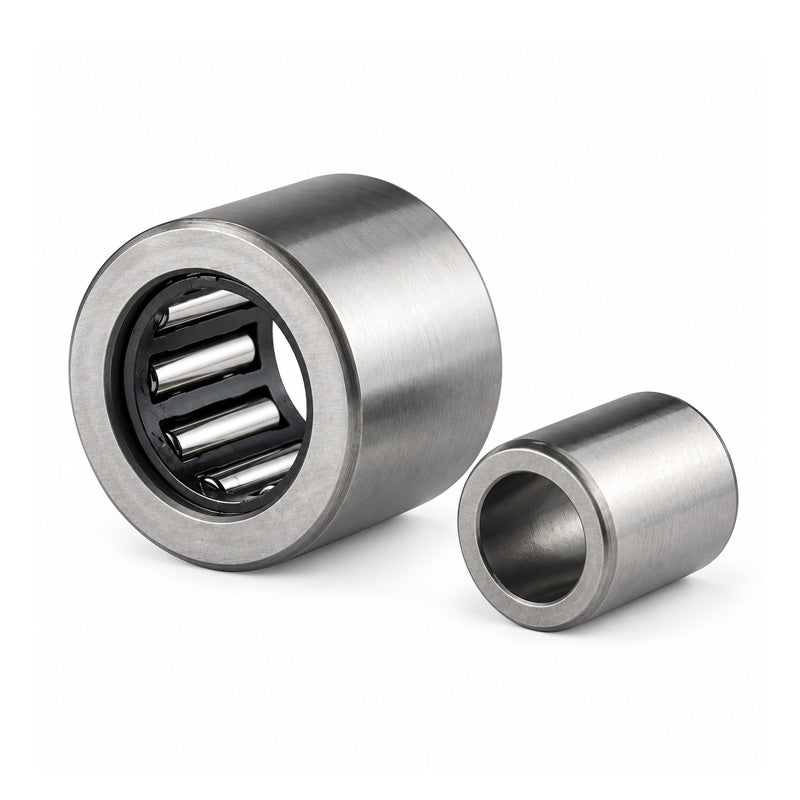

Major Brand NKI60/35 Needle Roller Bearing With Shaft Sleeve 60x82x35mm
Major Brand NKI60/35 Needle Roller Bearing With Shaft Sleeve 60x82x35mm
Regular price
€88,32
ex VAT
Regular price
Sale price
€88,32
ex VAT
In stock
Price Break
10+
€67,27
19+
€63,49
29+
€62,73
39+
€61,98
49+
€61,22
74+
€60,46
99+
€56,69
199+
€55,93
249+
€55,17
499+
€54,42
999+
€52,91
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 82mm
- Width:
- 35mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 82mm |
| B | 35mm |
| Dynamic load | 60500 N |
| Static load | 146000 N |
| Fatigue load limit Pu | 19000 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 68mm |
| r1r2 | 0.6mm |
| S (axial disp) | 1mm |
| da min | 64mm |
| Da max | 78mm |
| ra max | 0.6mm |
