SKU: NKI60/35-EU

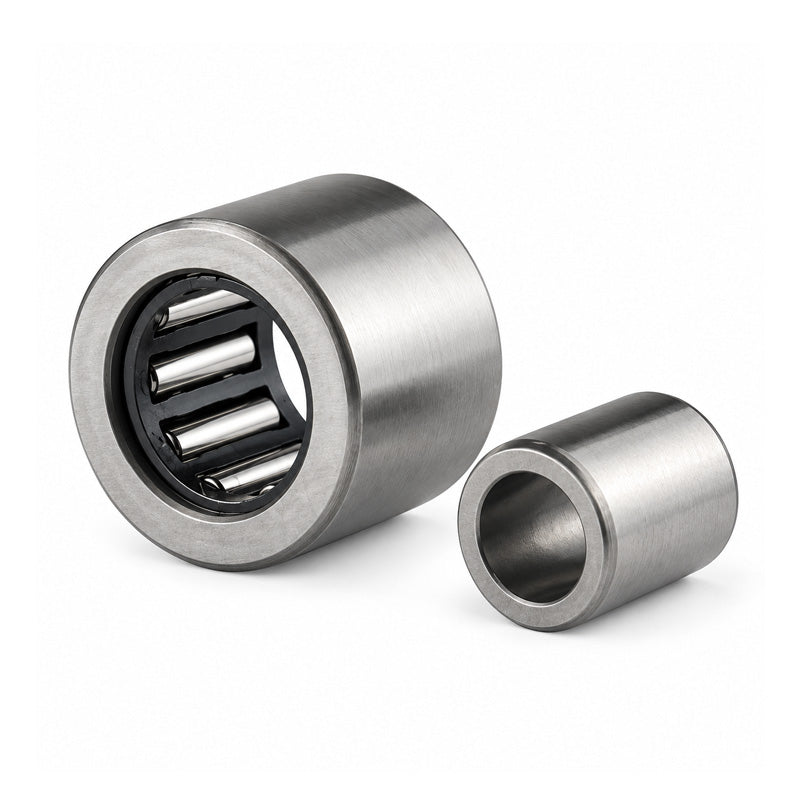

NKI60/35 Budget Needle Roller Bearing / Shaft Sleeve 60x82x35mm
NKI60/35 Budget Needle Roller Bearing / Shaft Sleeve 60x82x35mm
Regular price
€70,65
ex VAT
Regular price
Sale price
€70,65
ex VAT
In stock
Price Break
10+
€53,81
19+
€50,79
29+
€50,19
39+
€49,58
49+
€48,98
74+
€48,37
99+
€45,35
199+
€44,74
249+
€44,14
499+
€43,53
999+
€42,33
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 82mm
- Width:
- 35mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 82mm |
| B | 35mm |
| Dynamic load C | 60500 N |
| Static load Co | 146000 N |
| Fatigue load limit Pu | 19000 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 68mm |
| r1r2 | 0.6mm |
| S (axial disp) | 1mm |
| da min | 64mm |
| Da max | 78mm |
| ra max | 0.6mm |
