SKU: NKI55/35-EU

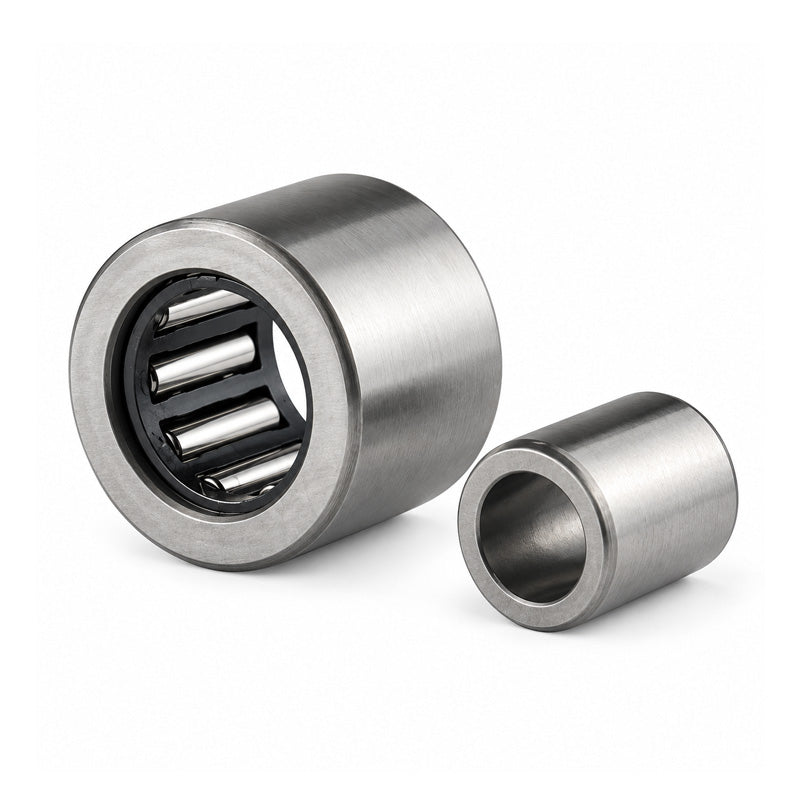

NKI55/35 Budget Needle Roller Bearing / Shaft Sleeve 55x72x35mm
NKI55/35 Budget Needle Roller Bearing / Shaft Sleeve 55x72x35mm
Regular price
€59,15
ex VAT
Regular price
Sale price
€59,15
ex VAT
In stock
Price Break
10+
€45,05
19+
€42,52
29+
€42,01
39+
€41,50
49+
€41,00
74+
€40,49
99+
€37,96
199+
€37,46
249+
€36,95
499+
€36,44
999+
€35,43
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 72mm
- Width:
- 35mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 72mm |
| B | 35mm |
| Dynamic load C | 55000 N |
| Static load Co | 134000 N |
| Fatigue load limit Pu | 17600 N |
| Speed in grease | 4800 rpm |
| Speed in oil | 6700 rpm |
| F | 60mm |
| r1r2 | 0.6mm |
| S (axial disp) | 2mm |
| da min | 59mm |
| Da max | 68mm |
| ra max | 0.6mm |
