SKU: NKI5/12TN-EU

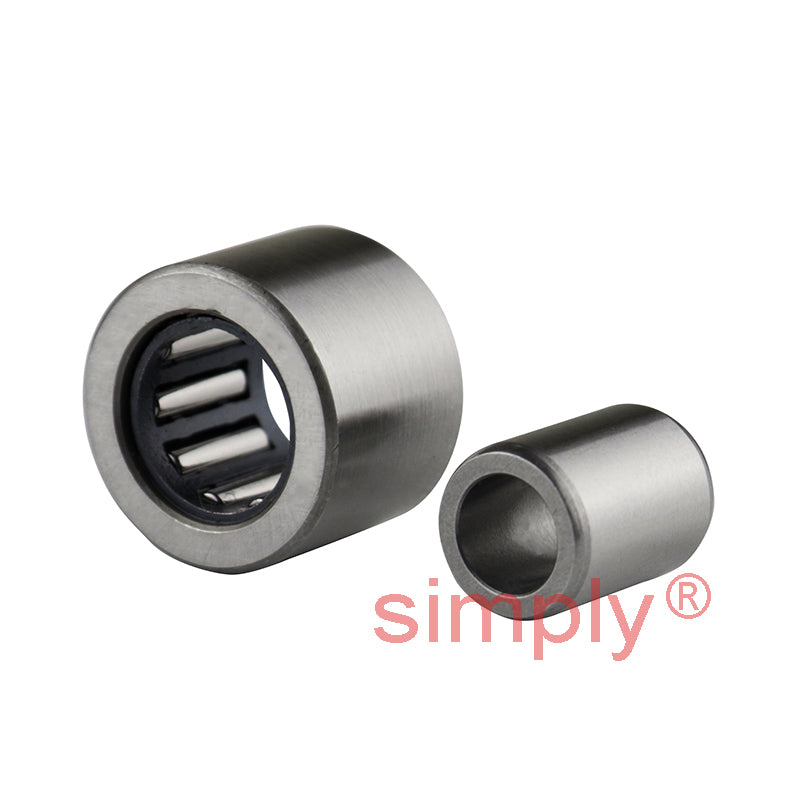

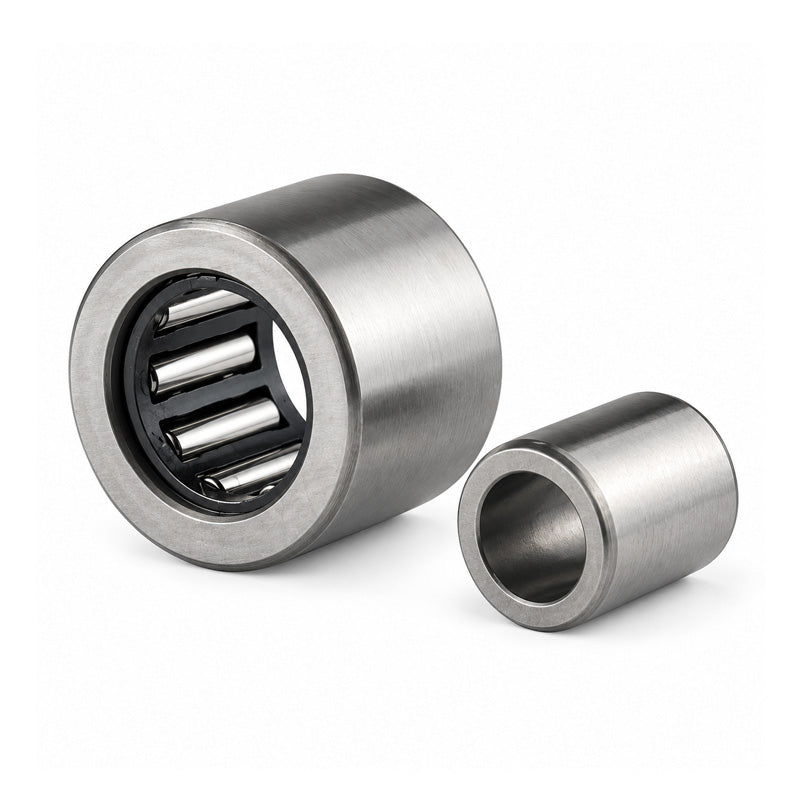

NKI5/12TN Budget Needle Roller Bearing / Shaft Sleeve 5x15x12mm
NKI5/12TN Budget Needle Roller Bearing / Shaft Sleeve 5x15x12mm
Regular price
€10,96
ex VAT
Regular price
Sale price
€10,96
ex VAT
In stock
Price Break
10+
€8,34
19+
€7,88
29+
€7,78
39+
€7,69
49+
€7,59
74+
€7,50
99+
€7,03
199+
€6,94
249+
€6,84
499+
€6,75
999+
€6,56
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 15mm
- Width:
- 12mm
Technical
Technical
| d | 5mm |
|---|---|
| D | 15mm |
| B | 12mm |
| Dynamic load C | 3800 N |
| Static load Co | 4250 N |
| Fatigue load limit Pu | 465 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| F | 8mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1.5mm |
| da min | 7mm |
| Da max | 13mm |
| ra max | 0.3mm |
