SKU: NKI45/35TN-EU

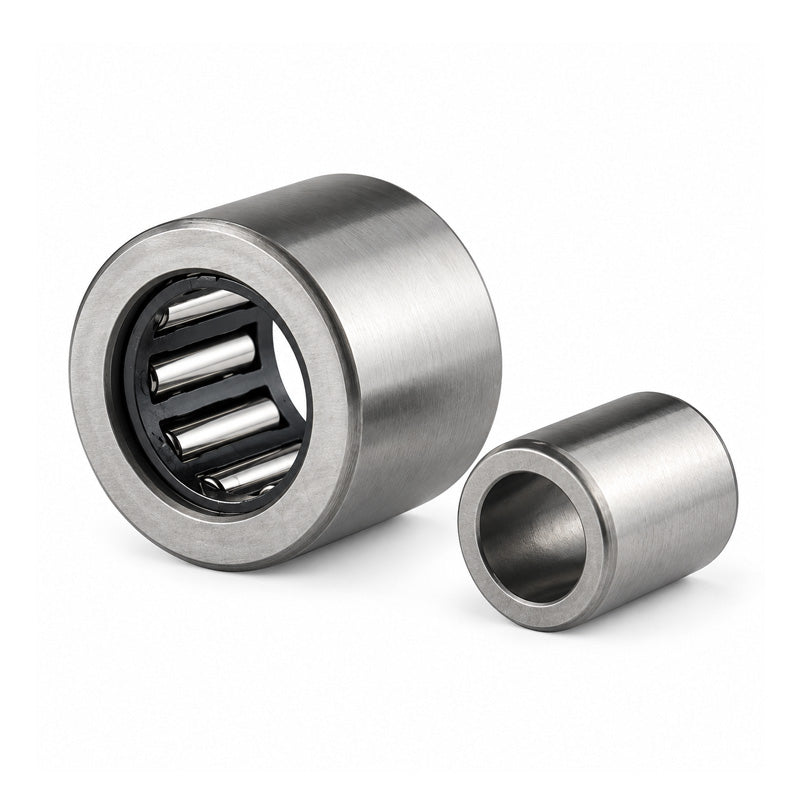

NKI45/35TN Budget Needle Roller Bearing / Shaft Sleeve 45x62x35mm
NKI45/35TN Budget Needle Roller Bearing / Shaft Sleeve 45x62x35mm
Regular price
€43,92
ex VAT
Regular price
Sale price
€43,92
ex VAT
In stock
Price Break
10+
€33,45
19+
€31,57
29+
€31,19
39+
€30,81
49+
€30,44
74+
€30,06
99+
€28,18
199+
€27,81
249+
€27,43
499+
€27,06
999+
€26,31
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 62mm |
| B | 35mm |
| Dynamic load C | 49500 N |
| Static load Co | 110000 N |
| Fatigue load limit Pu | 14300 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 8000 rpm |
| F | 50mm |
| r1r2 | 0.6mm |
| S (axial disp) | 2mm |
| da min | 49mm |
| Da max | 58mm |
| ra max | 0.6mm |
