SKU: NKI40/30-MB

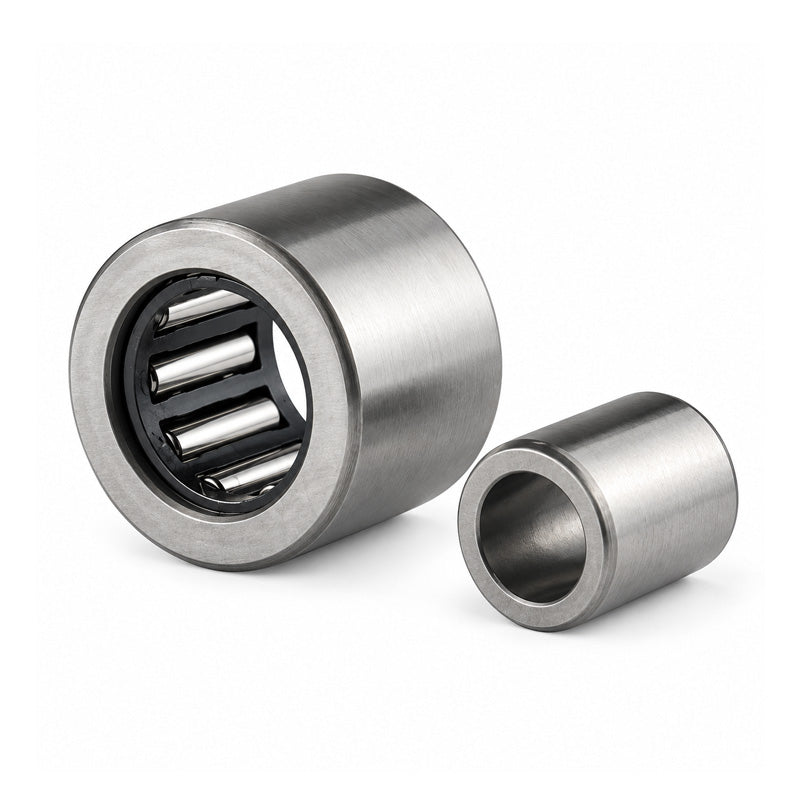

Major Brand NKI40/30 Needle Roller Bearing With Shaft Sleeve 40x55x30mm
Major Brand NKI40/30 Needle Roller Bearing With Shaft Sleeve 40x55x30mm
Regular price
€50,37
ex VAT
Regular price
Sale price
€50,37
ex VAT
In stock
Price Break
10+
€38,36
19+
€36,21
29+
€35,78
39+
€35,34
49+
€34,91
74+
€34,48
99+
€32,33
199+
€31,90
249+
€31,46
499+
€31,03
999+
€30,17
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 55mm
- Width:
- 30mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 55mm |
| B | 30mm |
| Dynamic load | 40200 N |
| Static load | 93000 N |
| Fatigue load limit Pu | 12000 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| F | 45mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 42mm |
| Da max | 53mm |
| ra max | 0.3mm |
