SKU: NKI38/30-MB

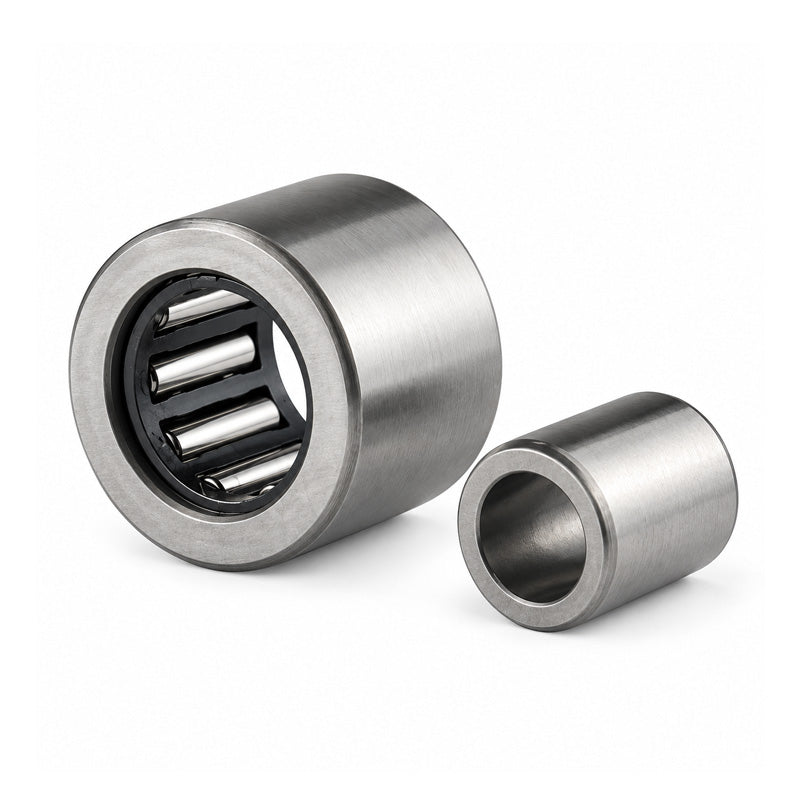

Major Brand NKI38/30 Needle Roller Bearing With Shaft Sleeve 38x53x30mm
Major Brand NKI38/30 Needle Roller Bearing With Shaft Sleeve 38x53x30mm
Regular price
€63,82
ex VAT
Regular price
Sale price
€63,82
ex VAT
In stock
Price Break
10+
€48,60
19+
€45,87
29+
€45,33
39+
€44,78
49+
€44,24
74+
€43,69
99+
€40,96
199+
€40,41
249+
€39,87
499+
€39,32
999+
€38,23
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 53mm
- Width:
- 30mm
Technical
Technical
| d | 38mm |
|---|---|
| D | 53mm |
| B | 30mm |
| Dynamic load | 40200 N |
| Static load | 90000 N |
| Fatigue load limit Pu | 11600 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| F | 43mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 40mm |
| Da max | 51mm |
| ra max | 0.3mm |
