SKU: NKI38/30-EU

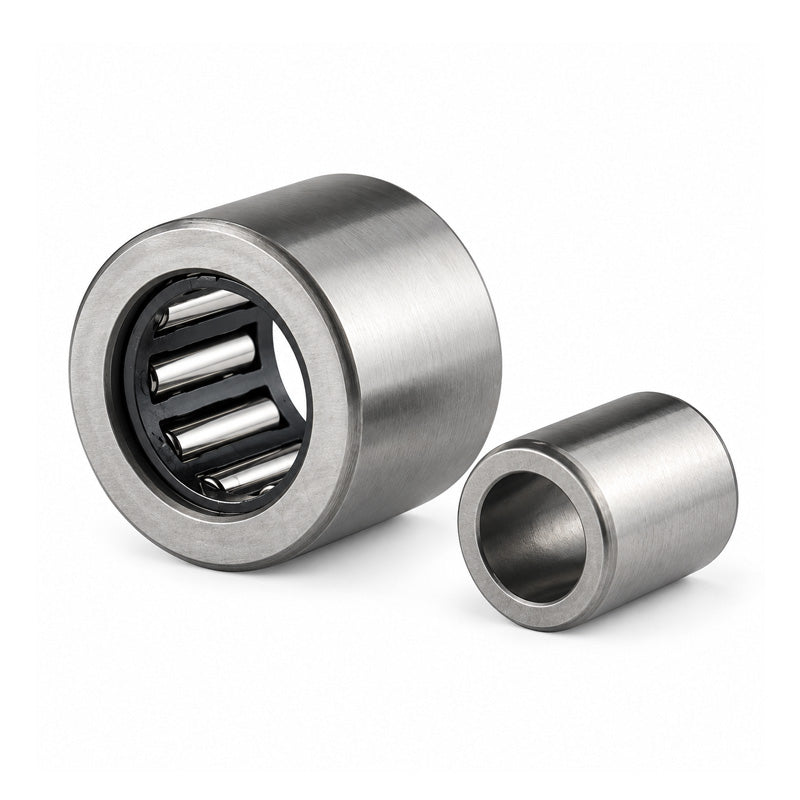

NKI38/30 Budget Needle Roller Bearing / Shaft Sleeve 38x53x30mm
NKI38/30 Budget Needle Roller Bearing / Shaft Sleeve 38x53x30mm
Regular price
€36,87
ex VAT
Regular price
Sale price
€36,87
ex VAT
In stock
Price Break
10+
€32,81
19+
€30,97
29+
€30,60
39+
€30,23
49+
€29,86
74+
€29,50
99+
€27,65
199+
€27,28
249+
€26,92
499+
€26,55
999+
€25,81
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 53mm
- Width:
- 30mm
Technical
Technical
| d | 38mm |
|---|---|
| D | 53mm |
| B | 30mm |
| Dynamic load C | 40200 N |
| Static load Co | 90000 N |
| Fatigue load limit Pu | 11600 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| F | 43mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 40mm |
| Da max | 51mm |
| ra max | 0.3mm |
