SKU: NKI35/30-MB

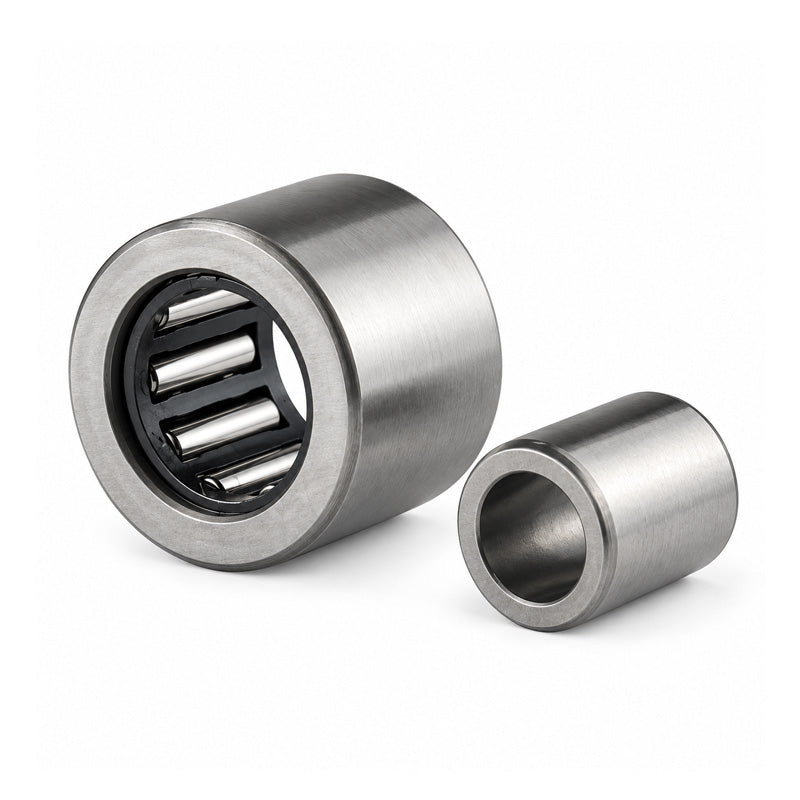

Major Brand NKI35/30 Needle Roller Bearing With Shaft Sleeve 35x50x30mm
Major Brand NKI35/30 Needle Roller Bearing With Shaft Sleeve 35x50x30mm
Regular price
€42,09
ex VAT
Regular price
Sale price
€42,09
ex VAT
In stock
Price Break
10+
€32,06
19+
€30,26
29+
€29,90
39+
€29,54
49+
€29,18
74+
€28,82
99+
€27,02
199+
€26,66
249+
€26,29
499+
€25,93
999+
€25,21
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 50mm
- Width:
- 30mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 50mm |
| B | 30mm |
| Dynamic load | 38000 N |
| Static load | 83000 N |
| Fatigue load limit Pu | 10800 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| F | 40mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 37mm |
| Da max | 48mm |
| ra max | 0.3mm |
