SKU: NKI25/20TN-EU

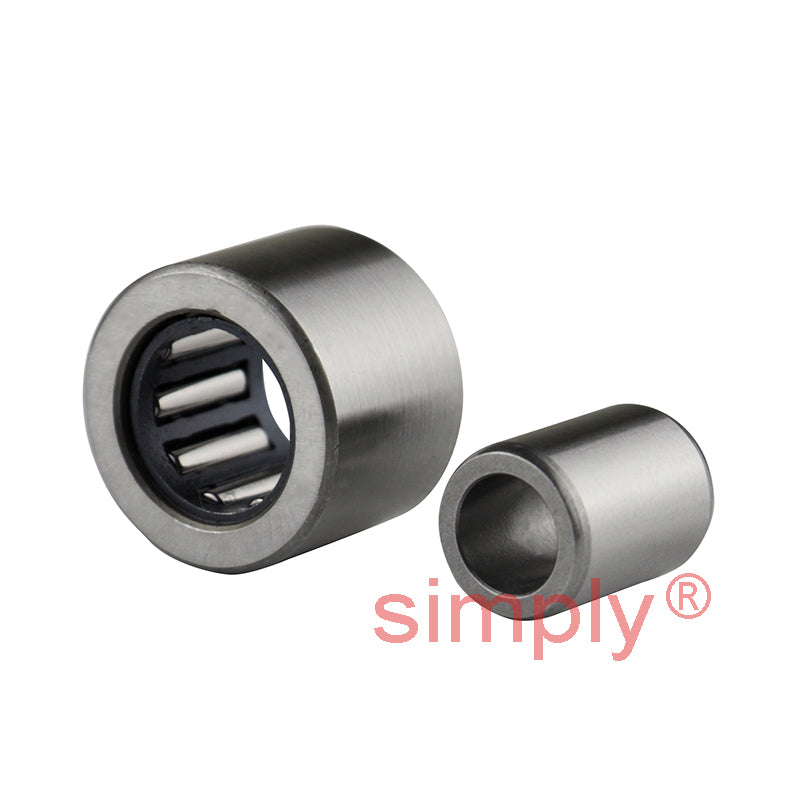

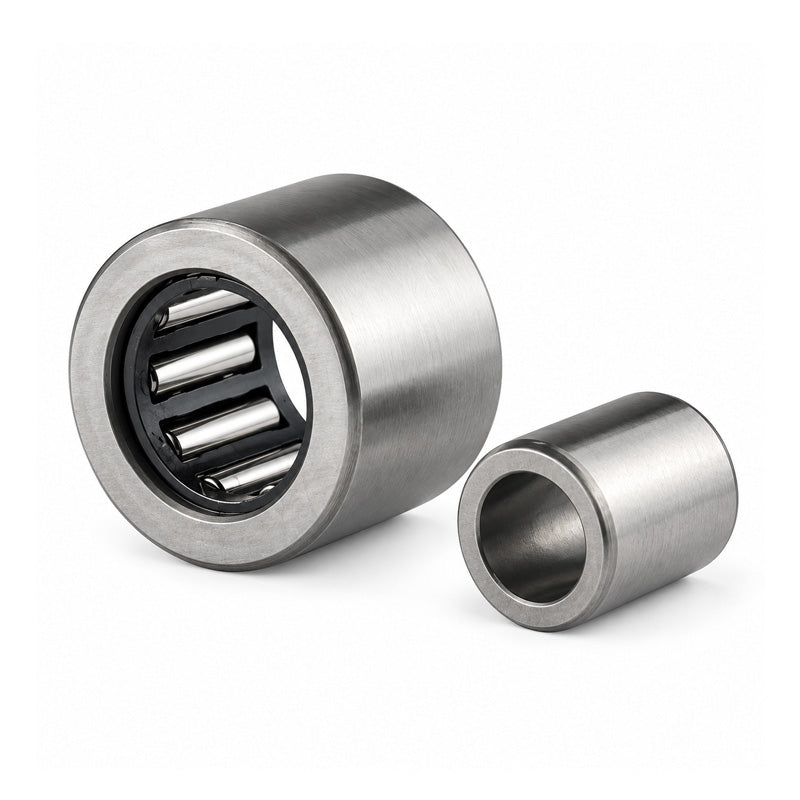

NKI25/20TN Budget Needle Roller Bearing / Shaft Sleeve 25x38x20mm

Name: NKI25/20TN Budget Needle Roller Bearing / Shaft Sleeve 25x38x20mm
Brand: Gen
SKU: NKI25/20TN-EU
Price: 9.24 EUR
Availability: InStock

€9,24 ex VAT

Sale Sold out

In stock

Price Break

10+ €7,04

19+ €6,64

29+ €6,57

39+ €6,49

49+ €6,41

74+ €6,33

99+ €5,93

199+ €5,85

249+ €5,77

499+ €5,70

999+ €5,54

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 25mm
Outside Diameter:: 38mm
Width:: 20mm

Technical

d	25mm
D	38mm
B	20mm
Dynamic load C	22000 N
Static load Co	36500 N
Fatigue load limit Pu	4650 N
Speed in grease	9000 rpm
Speed in oil	14000 rpm
F	29mm
r1r2	0.3mm
S (axial disp)	1mm
da min	27mm
Da max	36mm
ra max	0.3mm
