SKU: NKI22/16-MB

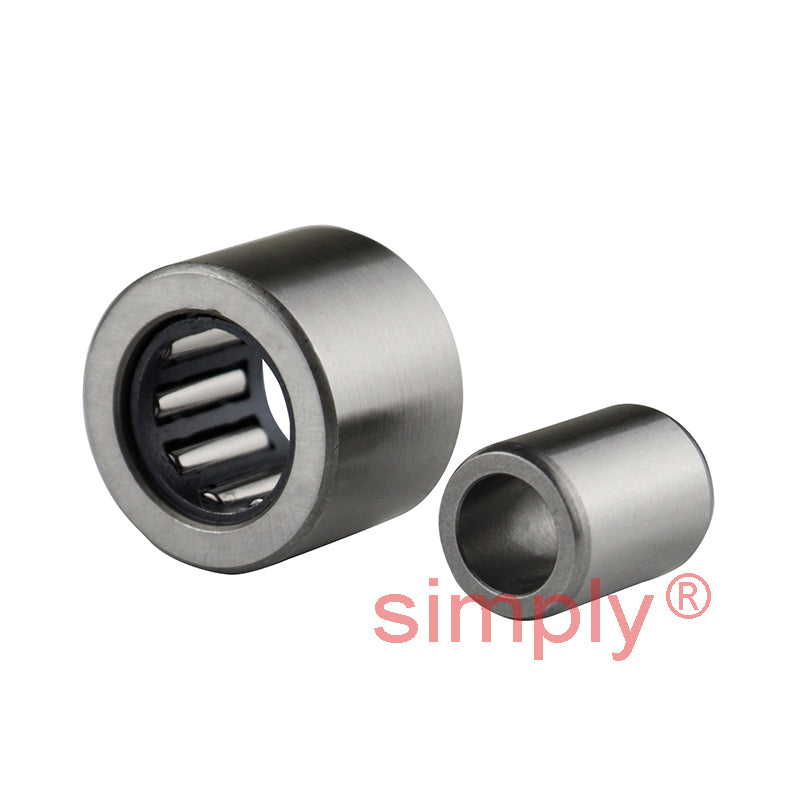

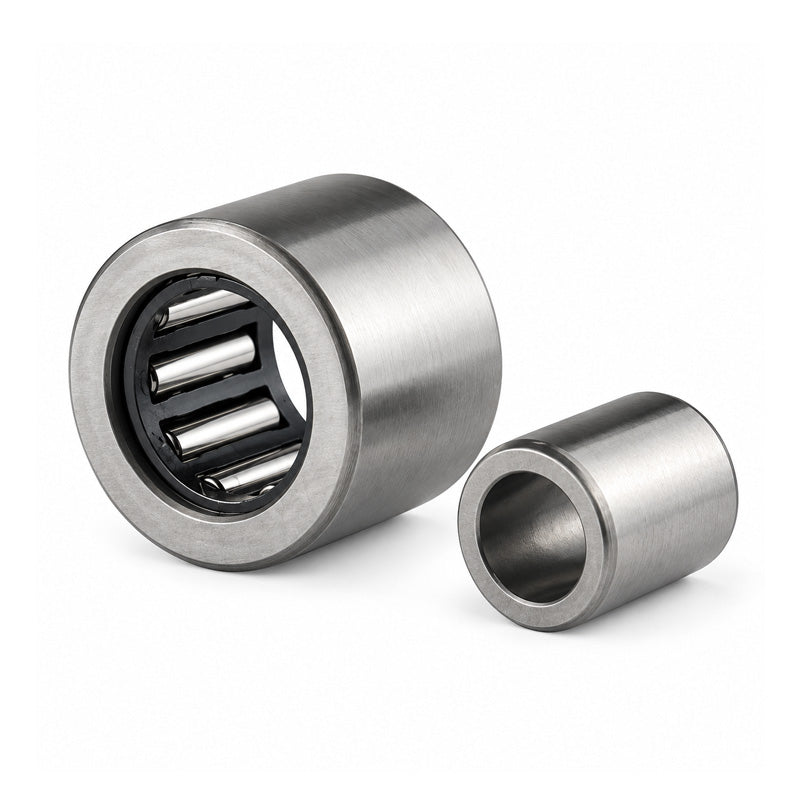

Major Brand NKI22/16 Needle Roller Bearing With Shaft Sleeve 22x34x16mm
Major Brand NKI22/16 Needle Roller Bearing With Shaft Sleeve 22x34x16mm
Regular price
€17,13
ex VAT
Regular price
Sale price
€17,13
ex VAT
In stock
Price Break
10+
€13,05
19+
€12,31
29+
€12,17
39+
€12,02
49+
€11,87
74+
€11,73
99+
€11,00
199+
€10,85
249+
€10,70
499+
€10,56
999+
€10,26
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 34mm
- Width:
- 16mm
Technical
Technical
| d | 22mm |
|---|---|
| D | 34mm |
| B | 16mm |
| Dynamic load | 15700 N |
| Static load | 26000 N |
| Fatigue load limit Pu | 3200 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 26mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 24mm |
| Da max | 32mm |
| ra max | 0.3mm |
