SKU: NKI20/16-EU

NKI20/16 Budget Needle Roller Bearing / Shaft Sleeve 20x32x16mm

Name: NKI20/16 Budget Needle Roller Bearing / Shaft Sleeve 20x32x16mm
Brand: Gen
SKU: NKI20/16-EU
Price: 17.20 EUR
Availability: InStock

€17,20 ex VAT

Sale Sold out

In stock

Price Break

10+ €13,10

19+ €12,37

29+ €12,22

39+ €12,07

49+ €11,93

74+ €11,78

99+ €11,04

199+ €10,90

249+ €10,75

499+ €10,60

999+ €10,31

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

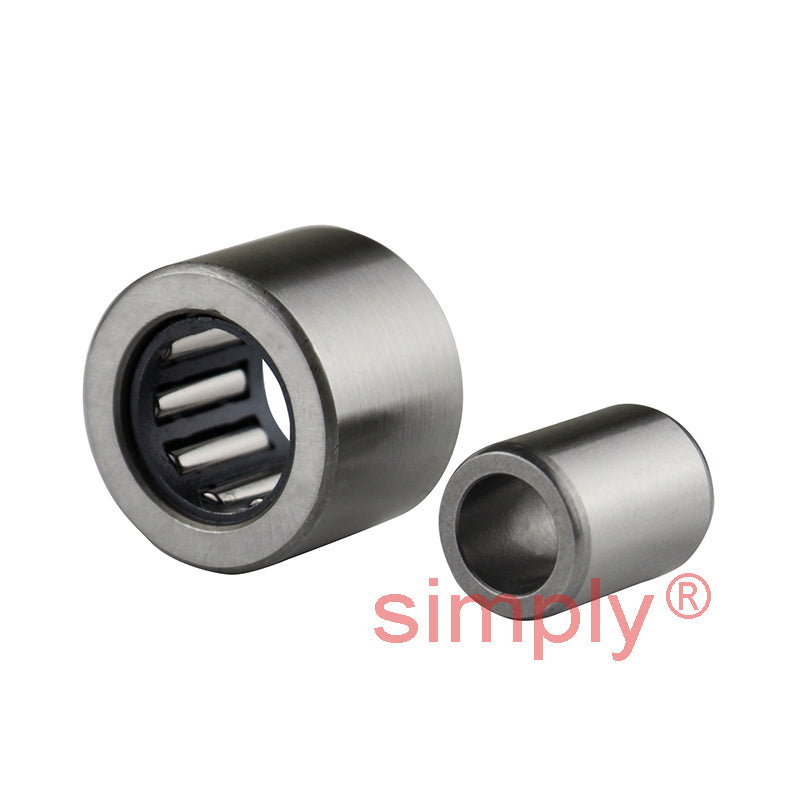

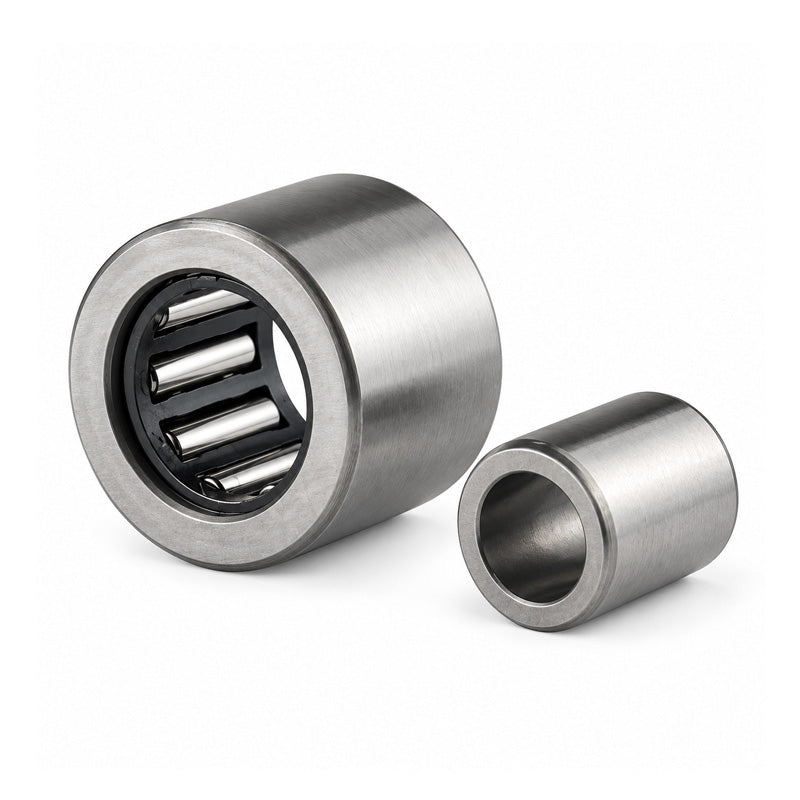

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 20mm
Outside Diameter:: 32mm
Width:: 16mm

Technical

d	20mm
D	32mm
B	16mm
Dynamic load C	15400 N
Static load Co	24500 N
Fatigue load limit Pu	3000 N
Speed in grease	10000 rpm
Speed in oil	16000 rpm
F	24mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	22mm
Da max	30mm
ra max	0.3mm
