SKU: NKI12/20-EU

NKI12/20 Budget Needle Roller Bearing / Shaft Sleeve 12x24x20mm

Name: NKI12/20 Budget Needle Roller Bearing / Shaft Sleeve 12x24x20mm
Brand: Gen
SKU: NKI12/20-EU
Price: 16.15 EUR
Availability: InStock

€16,15 ex VAT

Sale Sold out

In stock

Price Break

10+ €12,30

19+ €11,61

29+ €11,47

39+ €11,33

49+ €11,19

74+ €11,05

99+ €10,36

199+ €10,22

249+ €10,09

499+ €9,95

999+ €9,67

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

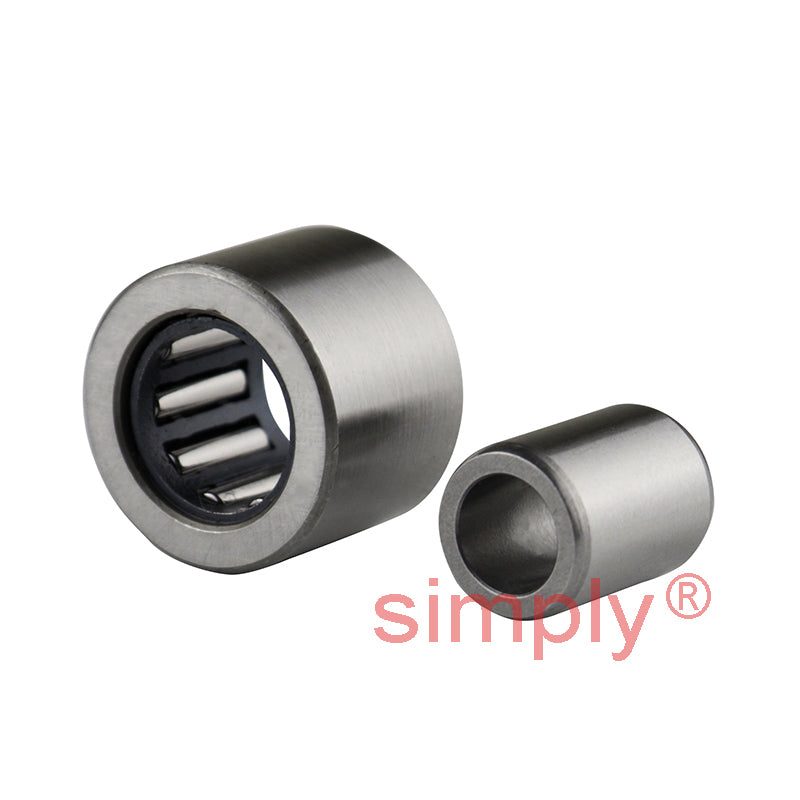

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 12mm
Outside Diameter:: 24mm
Width:: 20mm

Technical

d	12mm
D	24mm
B	20mm
Dynamic load C	14500 N
Static load Co	20000 N
Fatigue load limit Pu	2500 N
Speed in grease	16000 rpm
Speed in oil	24000 rpm
F	16mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	14mm
Da max	22mm
ra max	0.3mm
