SKU: NKI12/16-EU

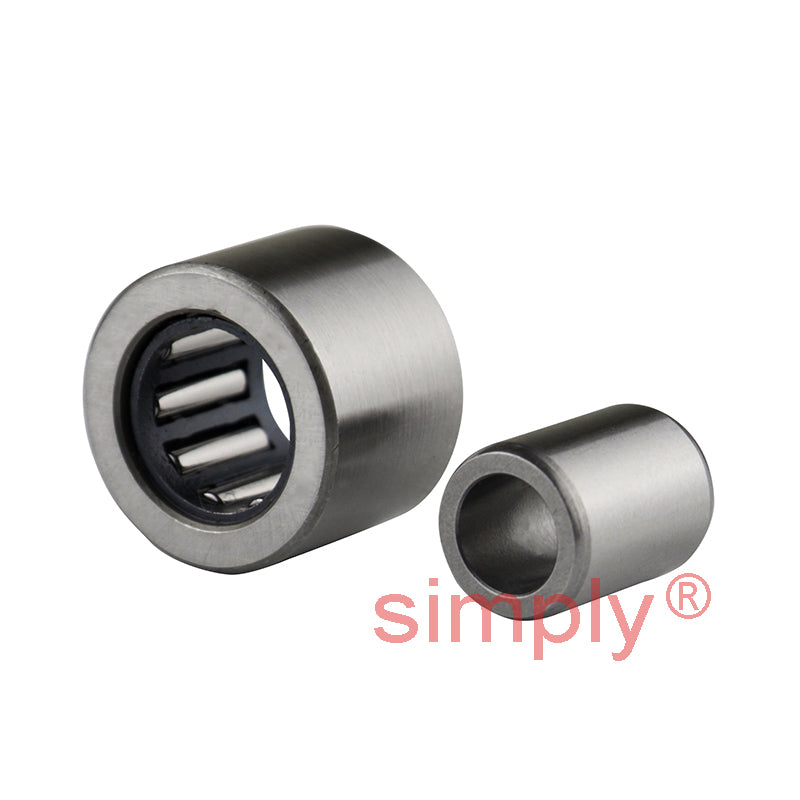

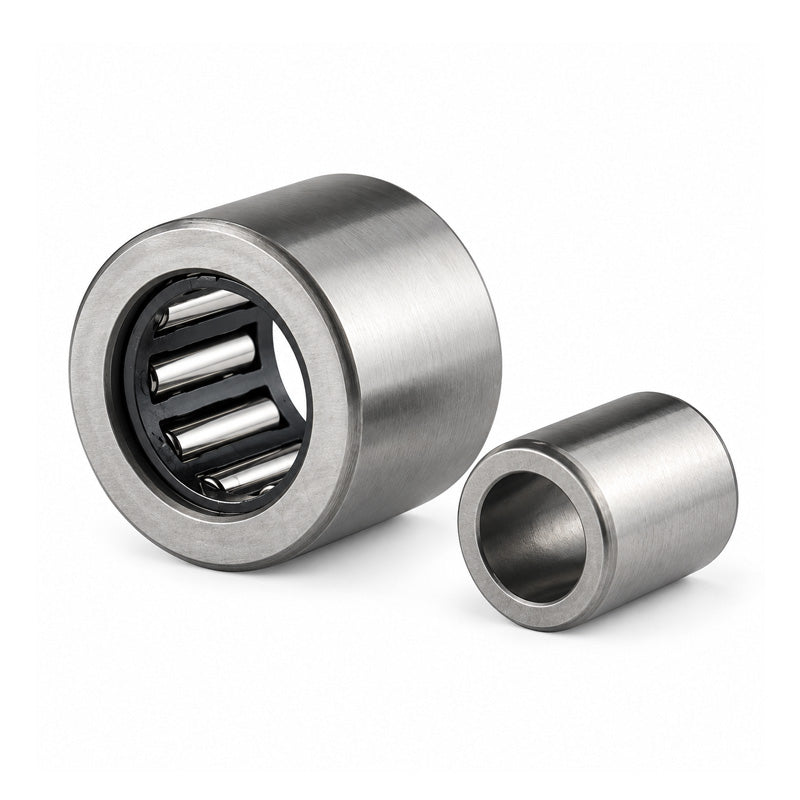

NKI12/16 Budget Needle Roller Bearing / Shaft Sleeve 12x24x16mm

Name: NKI12/16 Budget Needle Roller Bearing / Shaft Sleeve 12x24x16mm
Brand: Gen
SKU: NKI12/16-EU
Price: 13.92 EUR
Availability: InStock

€13,92 ex VAT

Sale Sold out

In stock

Price Break

10+ €10,60

19+ €10,01

29+ €9,89

39+ €9,77

49+ €9,65

74+ €9,53

99+ €8,93

199+ €8,81

249+ €8,70

499+ €8,58

999+ €8,34

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 12mm
Outside Diameter:: 24mm
Width:: 16mm

Technical

d	12mm
D	24mm
B	16mm
Dynamic load C	11700 N
Static load Co	15300 N
Fatigue load limit Pu	1860 N
Speed in grease	16000 rpm
Speed in oil	24000 rpm
F	16mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	14mm
Da max	22mm
ra max	0.3mm
