SKU: NKI100/40-EU

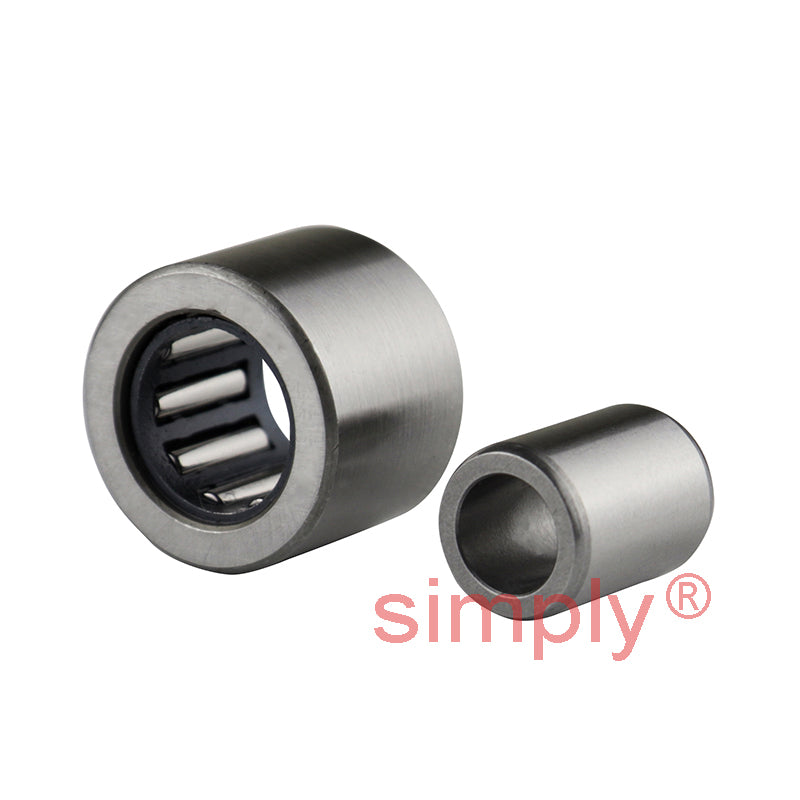

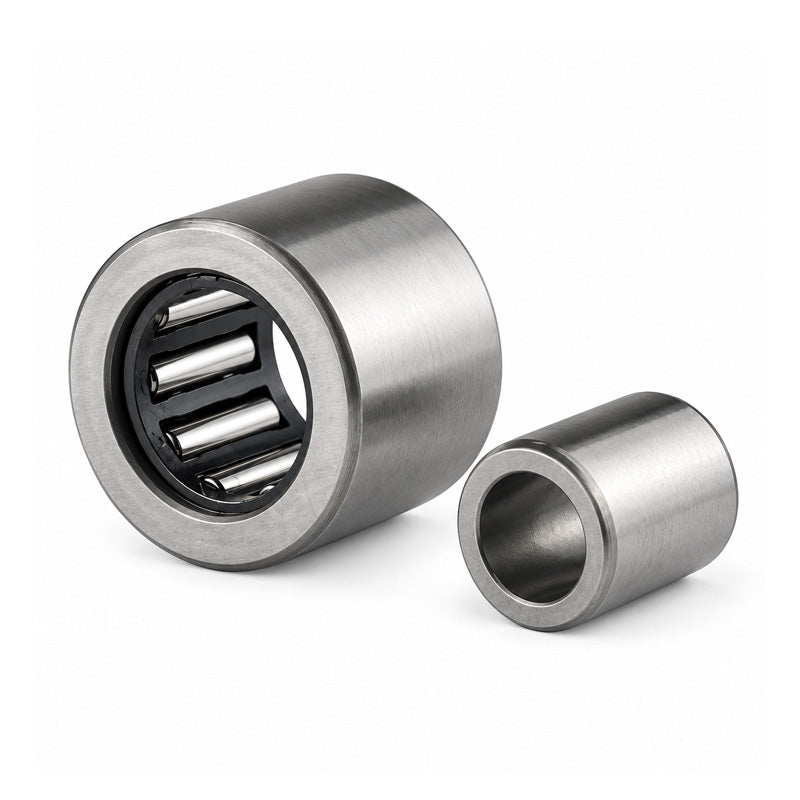

NKI100/40 Budget Needle Roller Bearing / Shaft Sleeve 100x130x40mm

Name: NKI100/40 Budget Needle Roller Bearing / Shaft Sleeve 100x130x40mm
Brand: Gen
SKU: NKI100/40-EU
Price: 227.95 EUR
Availability: InStock

€227,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €173,60

19+ €163,85

29+ €161,90

39+ €159,95

49+ €158,00

74+ €156,05

99+ €146,29

199+ €144,34

249+ €142,39

499+ €140,44

999+ €136,54

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 100mm
Outside Diameter:: 130mm
Width:: 40mm

Technical

d	100mm
D	130mm
B	40mm
Dynamic load C	123000 N
Static load Co	305000 N
Fatigue load limit Pu	38000 N
Speed in grease	2400 rpm
Speed in oil	3600 rpm
F	110mm
r1r2	1.1mm
S (axial disp)	2mm
da min	106.5mm
Da max	123.5mm
ra max	1mm
