SKU: NKI100/30-EU

NKI100/30 Budget Needle Roller Bearing / Shaft Sleeve 100x130x30mm

Name: NKI100/30 Budget Needle Roller Bearing / Shaft Sleeve 100x130x30mm
Brand: Gen
SKU: NKI100/30-EU
Price: 190.95 EUR
Availability: InStock

€190,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €145,43

19+ €137,26

29+ €135,62

39+ €133,99

49+ €132,35

74+ €130,72

99+ €122,55

199+ €120,92

249+ €119,28

499+ €117,65

999+ €114,38

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

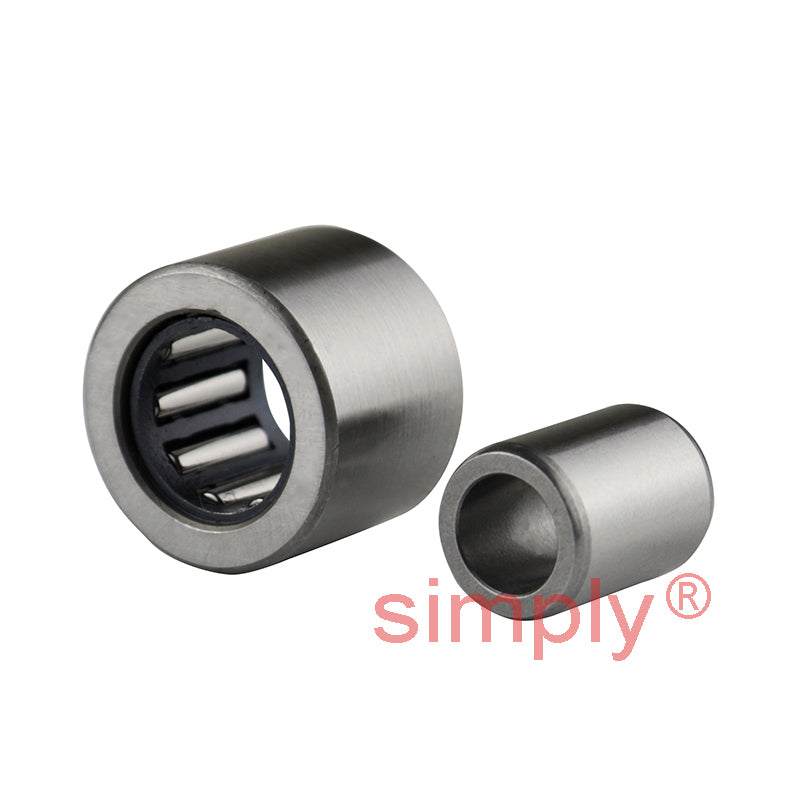

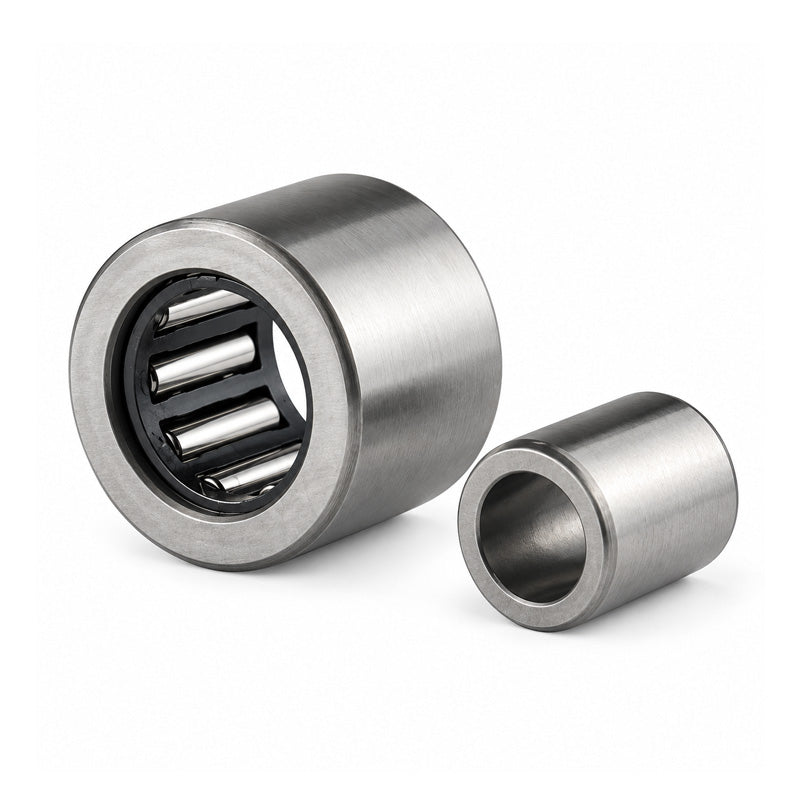

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 100mm
Outside Diameter:: 130mm
Width:: 30mm

Technical

d	100mm
D	130mm
B	30mm
Dynamic load C	96800 N
Static load Co	220000 N
Fatigue load limit Pu	27500 N
Speed in grease	2400 rpm
Speed in oil	3600 rpm
F	110mm
r1r2	1.1mm
S (axial disp)	1.5mm
da min	106.5mm
Da max	123.5mm
ra max	1mm
