SKU: NKI10/20-EU

NKI10/20 Budget Needle Roller Bearing / Shaft Sleeve 10x22x20mm

Name: NKI10/20 Budget Needle Roller Bearing / Shaft Sleeve 10x22x20mm
Brand: Gen
SKU: NKI10/20-EU
Price: 15.17 EUR
Availability: InStock

€15,17 ex VAT

Sale Sold out

In stock

Price Break

10+ €11,55

19+ €10,90

29+ €10,77

39+ €10,64

49+ €10,51

74+ €10,38

99+ €9,73

199+ €9,60

249+ €9,47

499+ €9,34

999+ €9,08

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

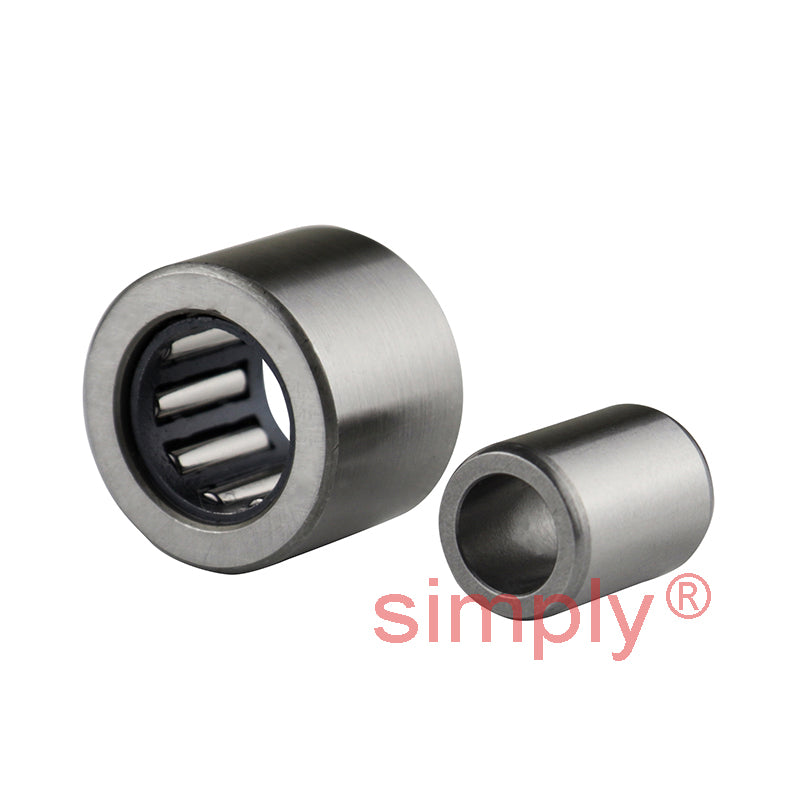

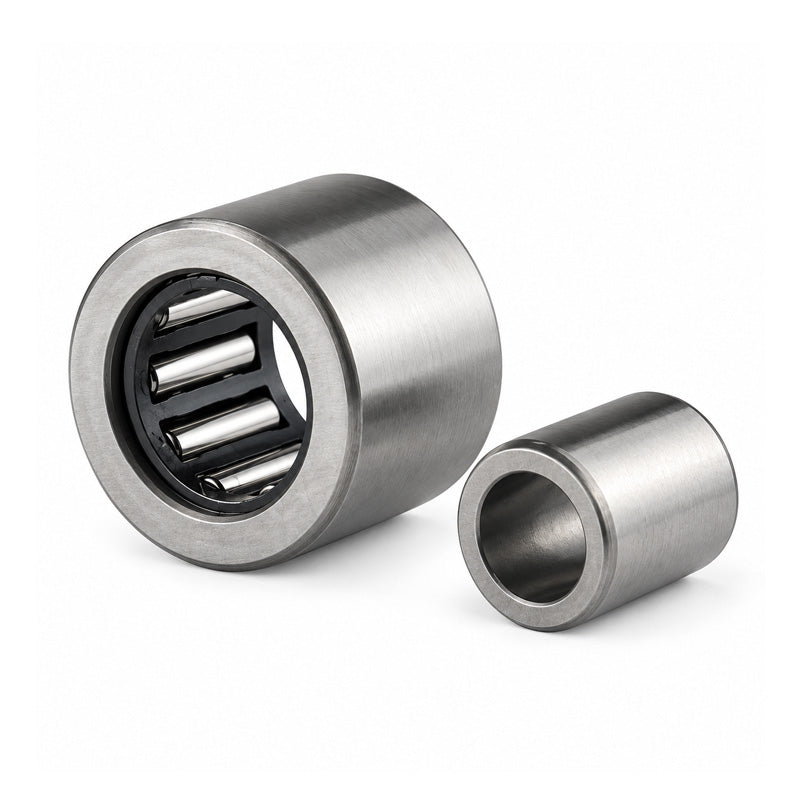

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 10mm
Outside Diameter:: 22mm
Width:: 20mm

Technical

d	10mm
D	22mm
B	20mm
Dynamic load C	12800 N
Static load Co	16600 N
Fatigue load limit Pu	2080 N
Speed in grease	17000 rpm
Speed in oil	26000 rpm
F	14mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	12mm
Da max	20mm
ra max	0.3mm
