SKU: NK95/36R-NTN

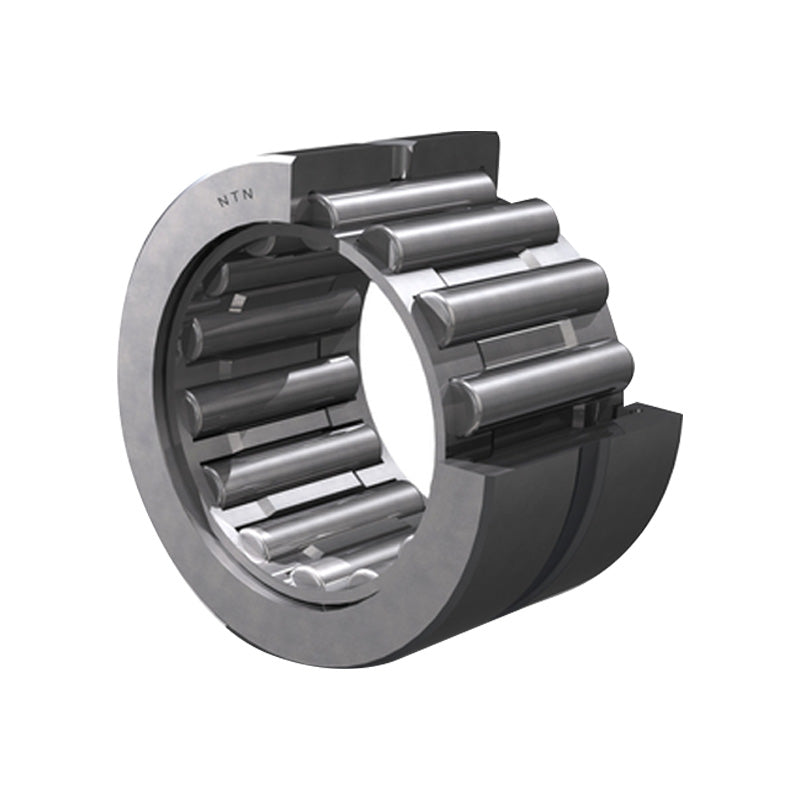

NTN NK95/36R Machined Needle Roller Bearing no Shaft Sleeve 95x115x36mm - Allow 2-3 Days

NTN NK95/36R Machined Needle Roller Bearing no Shaft Sleeve 95x115x36mm - Allow 2-3 Days
Regular price €90,67 ex VAT
Regular price Sale price €90,67 ex VAT
Sale Sold out

In stock

Price Break
3+ €76,81
4+ €73,71
9+ €72,16
19+ €69,83
49+ €68,28
99+ €64,40
499+ €54,31
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 95mm
D - Outside diameter 115mm
C - Width of bearing, drawn cup or outer ring 36mm
rs - Minimum fillet radius 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 108 kN
C0r - Static load rating 223 kN
N - Grease lubrication limit speed 2800 tr/min
N - Oil lubrication limit speed 4200 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 110mm
ras max - Maximum shaft & housing fillet radius 1mm
