SKU: NK95/36R+1R85X95X36-NTN

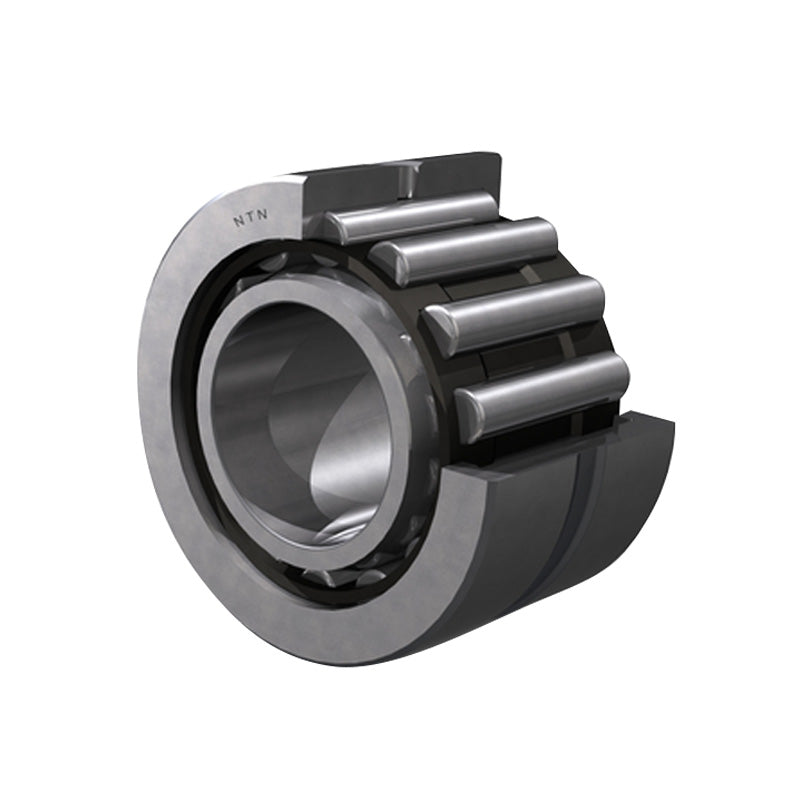

NTN NK95/36R-1R85X95X36 Machined Needle Roller Bearing with Shaft Sleeve 85x115x36mm - Allow 2-3 Days

NTN NK95/36R-1R85X95X36 Machined Needle Roller Bearing with Shaft Sleeve 85x115x36mm - Allow 2-3 Days
Regular price €129,53 ex VAT
Regular price Sale price €129,53 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,73
4+ €105,30
9+ €103,08
19+ €99,76
49+ €97,54
99+ €92,00
499+ €77,59
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 85mm
D - Outside diameter 115mm
C - Width of bearing, drawn cup or outer ring 36mm
F - Under roller diameter 95mm
rs - Minimum fillet radius 1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Inner ring reference 1R85X95X36
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 108 kN
C0r - Static load rating 223 kN
N - Grease lubrication limit speed 2800 tr/min
N - Oil lubrication limit speed 4200 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 90mm
Da max - Outer ring maximum shoulder diameter 110mm
ras max - Maximum shaft & housing fillet radius 1mm
