SKU: NK7/12TN-MB

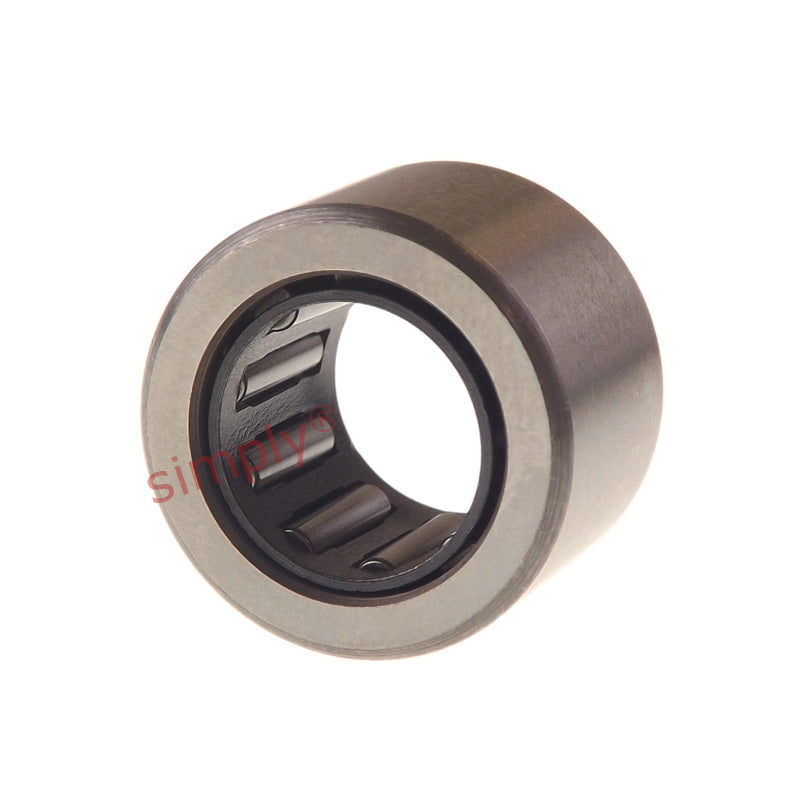

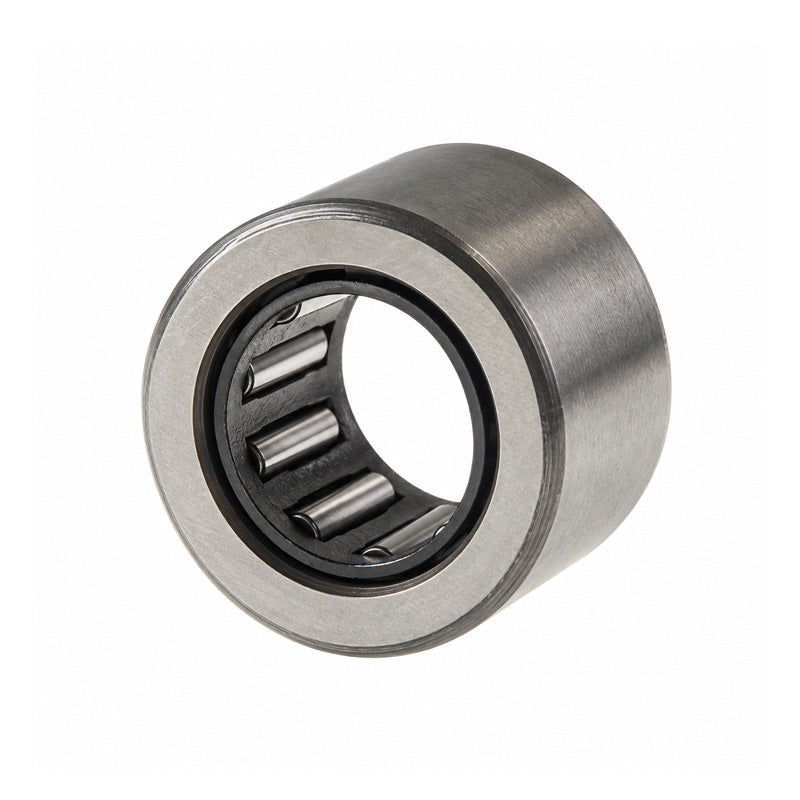

Major Brand NK7/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 7x14x12mm
Major Brand NK7/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 7x14x12mm
Regular price
€14,06
ex VAT
Regular price
Sale price
€14,06
ex VAT
In stock
Price Break
10+
€10,71
19+
€10,10
29+
€9,98
39+
€9,86
49+
€9,74
74+
€9,62
99+
€9,02
199+
€8,90
249+
€8,78
499+
€8,66
999+
€8,42
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 14mm
- Width:
- 12mm
Technical
Technical
| Fw | 7mm |
|---|---|
| D | 14mm |
| C | 12mm |
| Dynamic load | 3580 N |
| Static load | 3750 N |
| Fatigue load limit Pu | 415 N |
| Speed in grease | 30000 rpm |
| Speed in oil | 43000 rpm |
| r1r2 | 0.3mm |
| Da max | 12mm |
| ra max | 0.3mm |
| Seal | G7x14x2 |
| Weight | 8.2 g |
