SKU: NK7/10TN-EU

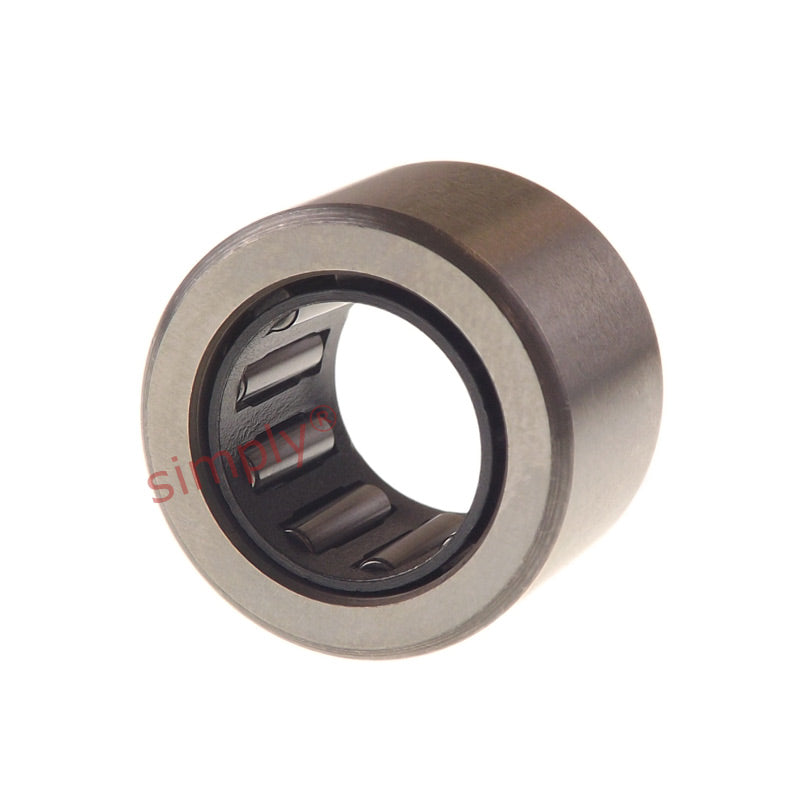

NK7/10TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 7x14x10mm
NK7/10TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 7x14x10mm
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
In stock
Price Break
10+
€6,05
19+
€5,71
29+
€5,64
39+
€5,58
49+
€5,51
74+
€5,44
99+
€5,10
199+
€5,03
249+
€4,96
499+
€4,90
999+
€4,76
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 14mm
- Width:
- 10mm
Technical
Technical
| Fw | 7mm |
|---|---|
| D | 14mm |
| C | 10mm |
| Dynamic load C | 2810 N |
| Static load Co | 2750 N |
| Fatigue load limit Pu | 290 N |
| Speed in grease | 30000 rpm |
| Speed in oil | 43000 rpm |
| r1r2 | 0.3mm |
| Da max | 12mm |
| ra max | 0.3mm |
| Seal | G7x14x2 |
| Weight | 6.9 g |
