SKU: NK68/35R+1R60X68X35-NTN

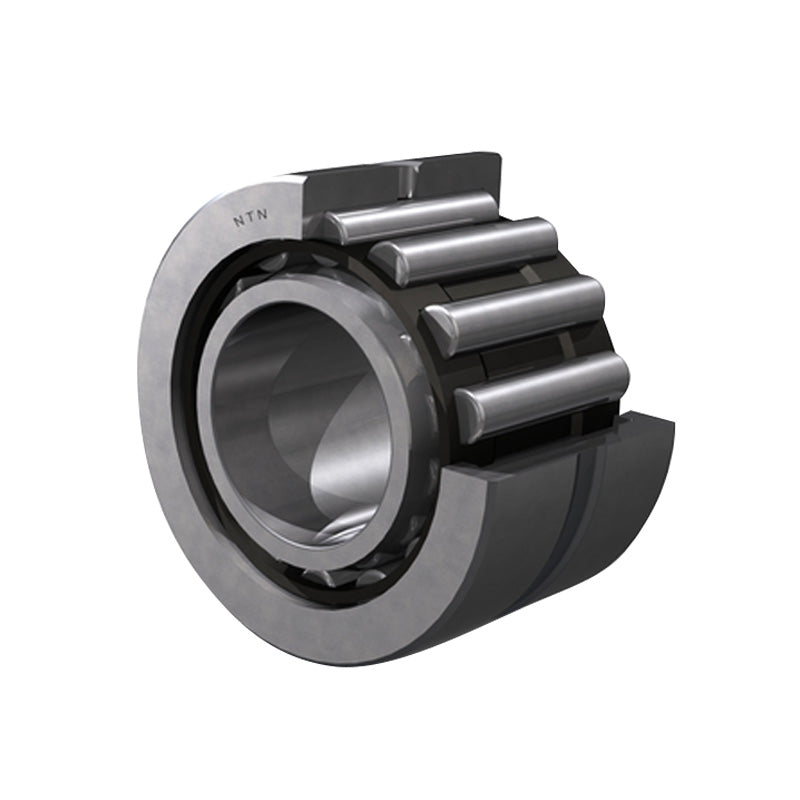

NTN NK68/35R-1R60X68X35 Machined Needle Roller Bearing with Shaft Sleeve 60x82x35mm - Allow 2-3 Days

NTN NK68/35R-1R60X68X35 Machined Needle Roller Bearing with Shaft Sleeve 60x82x35mm - Allow 2-3 Days
Regular price €64,73 ex VAT
Regular price Sale price €64,73 ex VAT
Sale Sold out

In stock

Price Break
3+ €54,84
4+ €52,62
9+ €51,51
19+ €49,85
49+ €48,74
99+ €45,97
499+ €38,77
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 60mm
D - Outside diameter 82mm
C - Width of bearing, drawn cup or outer ring 35mm
F - Under roller diameter 68mm
rs - Minimum fillet radius 0.6mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Inner ring reference 1R60X68X35
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 63 kN
C0r - Static load rating 139 kN
N - Grease lubrication limit speed 4000 tr/min
N - Oil lubrication limit speed 6000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 64mm
Da max - Outer ring maximum shoulder diameter 78mm
ras max - Maximum shaft & housing fillet radius 0.6mm
