SKU: NK68/25-MB

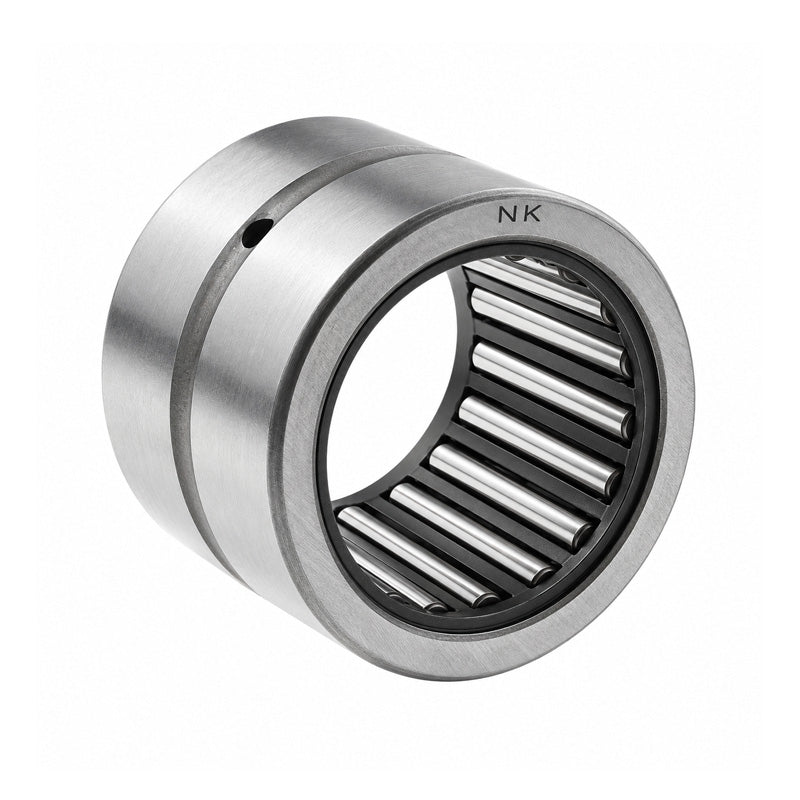

Major Brand NK68/25 Needle Roller Bearing With Flanges without Shaft Sleeve 68x82x25mm
Major Brand NK68/25 Needle Roller Bearing With Flanges without Shaft Sleeve 68x82x25mm
Regular price
€33,92
ex VAT
Regular price
Sale price
€33,92
ex VAT
In stock
Price Break
10+
€30,19
19+
€28,49
29+
€28,15
39+
€27,81
49+
€27,48
74+
€27,14
99+
€25,44
199+
€25,10
249+
€24,76
499+
€24,42
999+
€23,74
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 68mm
- Outside Diameter:
- 82mm
- Width:
- 25mm
Technical
Technical
| Fw | 68mm |
|---|---|
| D | 82mm |
| C | 25mm |
| Dynamic load | 44000 N |
| Static load | 95000 N |
| Fatigue load limit Pu | 12000 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| r1r2 | 0.6mm |
| Da max | 78mm |
| ra max | 0.6mm |
| Weight | 240 g |
