SKU: NK60/35R-NTN

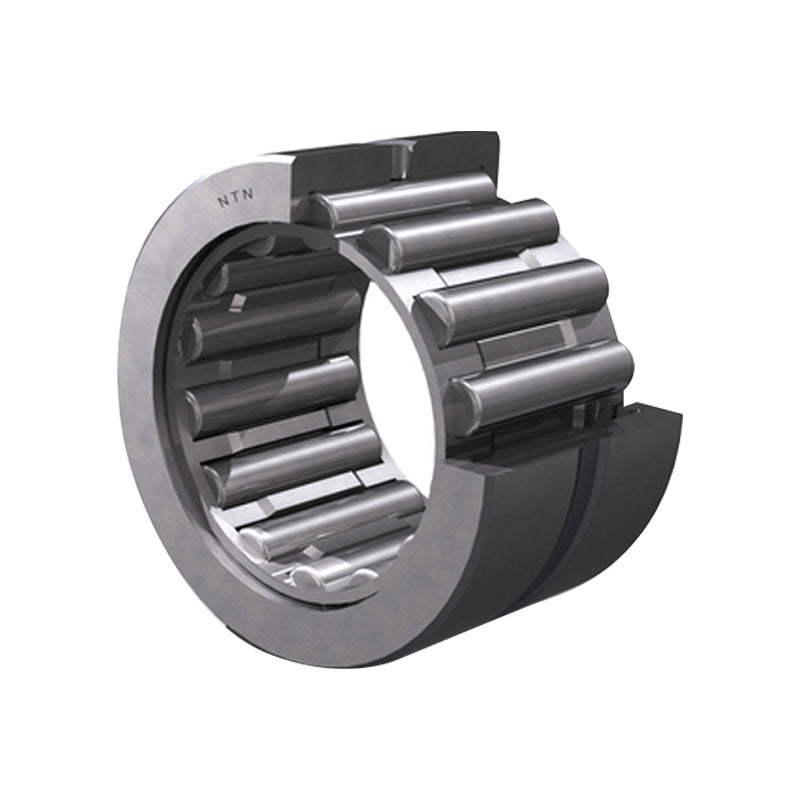

NTN NK60/35R Machined Needle Roller Bearing no Shaft Sleeve 60x72x35mm - Allow 2-3 Days

NTN NK60/35R Machined Needle Roller Bearing no Shaft Sleeve 60x72x35mm - Allow 2-3 Days
Regular price €36,26 ex VAT
Regular price Sale price €36,26 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,72
4+ €29,48
9+ €28,86
19+ €27,93
49+ €27,31
99+ €25,75
499+ €21,72
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 60mm
D - Outside diameter 72mm
C - Width of bearing, drawn cup or outer ring 35mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 57 kN
C0r - Static load rating 130 kN
N - Grease lubrication limit speed 4300 tr/min
N - Oil lubrication limit speed 6500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 68mm
ras max - Maximum shaft & housing fillet radius 0.6mm
