SKU: NK60/25R-NTN

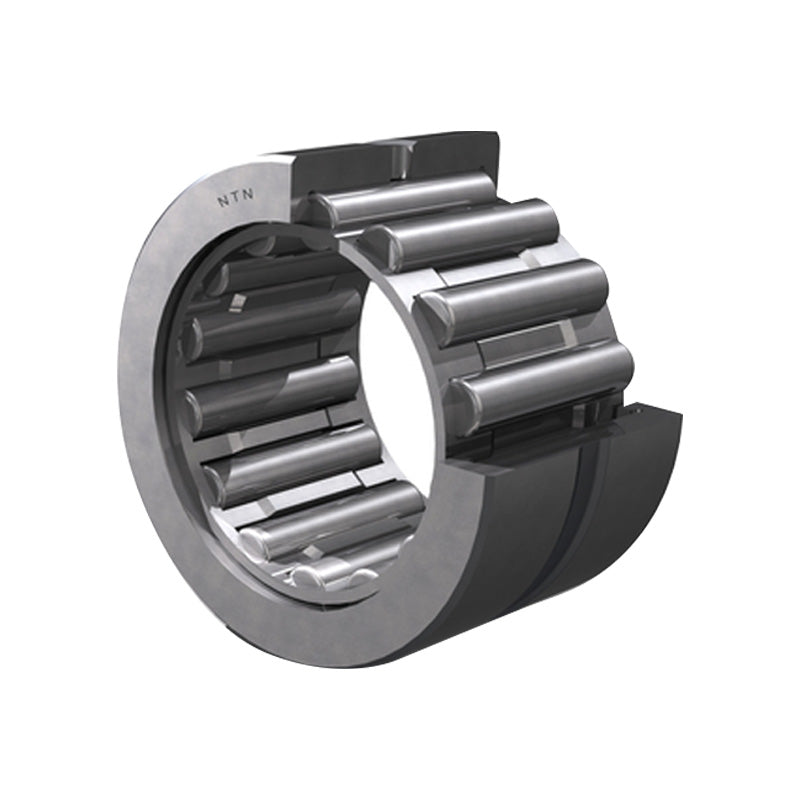

NTN NK60/25R Machined Needle Roller Bearing no Shaft Sleeve 60x72x25mm

NTN NK60/25R Machined Needle Roller Bearing no Shaft Sleeve 60x72x25mm
Regular price €28,36 ex VAT
Regular price Sale price €28,36 ex VAT
Sale Sold out

In stock

Price Break
3+ €21,60
4+ €20,39
9+ €20,14
19+ €19,90
49+ €19,66
99+ €19,42
499+ €18,20
999+ €17,96
1999+ €17,72
2999+ €17,47
4999+ €16,99
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 60mm
D - Outside diameter 72mm
C - Width of bearing, drawn cup or outer ring 25mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 41 kN
C0r - Static load rating 85 kN
N - Grease lubrication limit speed 4300 tr/min
N - Oil lubrication limit speed 6500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 68mm
ras max - Maximum shaft & housing fillet radius 0.6mm
