SKU: NK60/25R+1R55X60X25-NTN

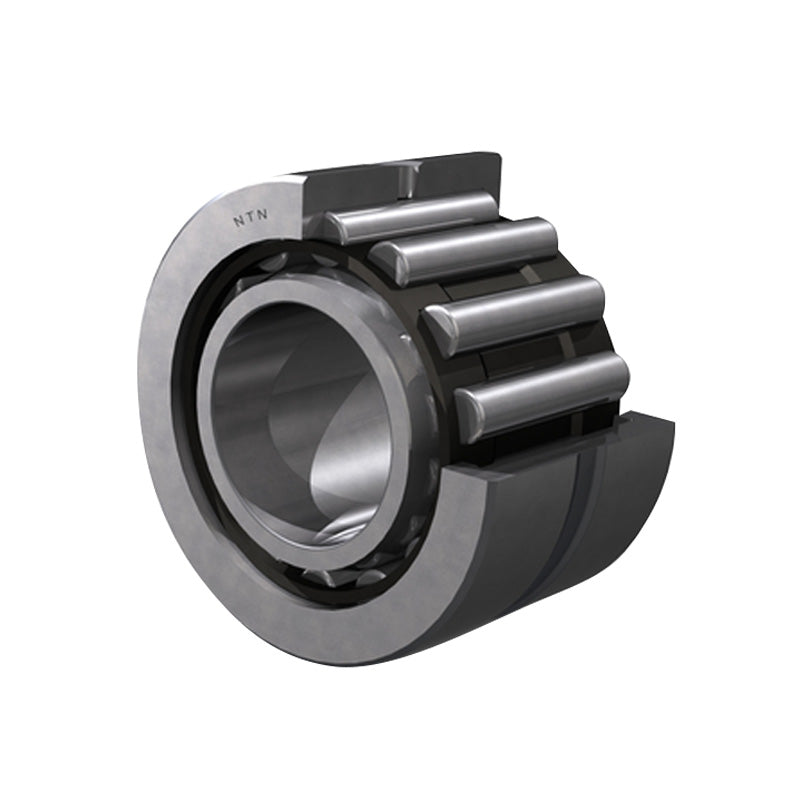

NTN NK60/25R-1R55X60X25 Machined Needle Roller Bearing with Shaft Sleeve 55x72x25mm - Allow 2-3 Days

NTN NK60/25R-1R55X60X25 Machined Needle Roller Bearing with Shaft Sleeve 55x72x25mm - Allow 2-3 Days
Regular price €46,58 ex VAT
Regular price Sale price €46,58 ex VAT
Sale Sold out

In stock

Price Break
3+ €39,46
4+ €37,87
9+ €37,07
19+ €35,87
49+ €35,08
99+ €33,08
499+ €27,90
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 55mm
D - Outside diameter 72mm
C - Width of bearing, drawn cup or outer ring 25mm
F - Under roller diameter 60mm
rs - Minimum fillet radius 0.6mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Inner ring reference 1R55X60X25
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 41 kN
C0r - Static load rating 85 kN
N - Grease lubrication limit speed 4300 tr/min
N - Oil lubrication limit speed 6500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 58mm
Da max - Outer ring maximum shoulder diameter 68mm
ras max - Maximum shaft & housing fillet radius 0.6mm
