SKU: NK55/25-MB

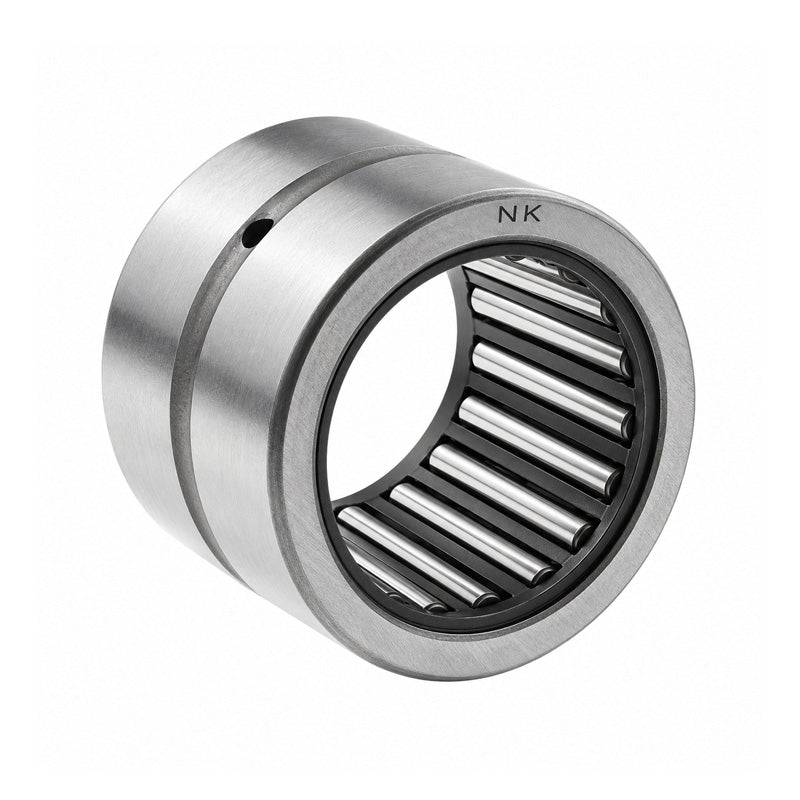

Major Brand NK55/25 Needle Roller Bearing With Flanges without Shaft Sleeve 55x68x25mm
Major Brand NK55/25 Needle Roller Bearing With Flanges without Shaft Sleeve 55x68x25mm
Regular price
€21,51
ex VAT
Regular price
Sale price
€21,51
ex VAT
In stock
Price Break
10+
€16,38
19+
€15,46
29+
€15,28
39+
€15,10
49+
€14,91
74+
€14,73
99+
€13,81
199+
€13,62
249+
€13,44
499+
€13,26
999+
€12,89
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 68mm
- Width:
- 25mm
Technical
Technical
| Fw | 55mm |
|---|---|
| D | 68mm |
| C | 25mm |
| Dynamic load | 40200 N |
| Static load | 88000 N |
| Fatigue load limit Pu | 11200 N |
| Speed in grease | 5300 rpm |
| Speed in oil | 7500 rpm |
| r1r2 | 0.6mm |
| Da max | 64mm |
| ra max | 0.6mm |
| Weight | 180 g |
