SKU: NK50/35R-NTN

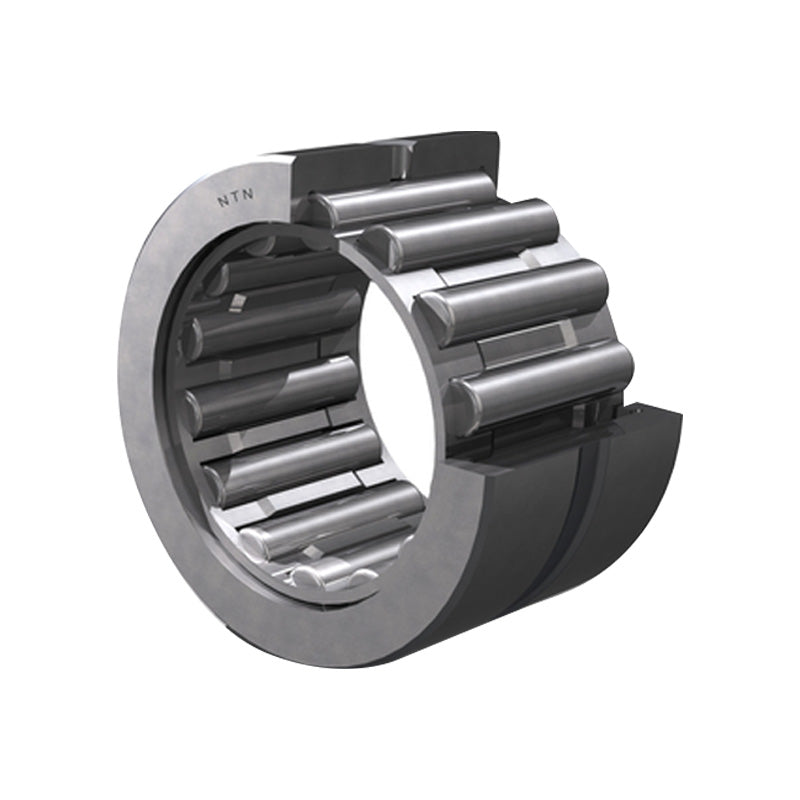

NTN NK50/35R Machined Needle Roller Bearing no Shaft Sleeve 50x62x35mm

NTN NK50/35R Machined Needle Roller Bearing no Shaft Sleeve 50x62x35mm
Regular price €26,68 ex VAT
Regular price Sale price €26,68 ex VAT
Sale Sold out

In stock

Price Break
3+ €20,32
4+ €19,18
9+ €18,95
19+ €18,72
49+ €18,49
99+ €18,26
499+ €17,12
999+ €16,89
1999+ €16,67
2999+ €16,44
4999+ €15,98
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 50mm
D - Outside diameter 62mm
C - Width of bearing, drawn cup or outer ring 35mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 51 kN
C0r - Static load rating 106 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 58mm
ras max - Maximum shaft & housing fillet radius 0.6mm
