SKU: NK50/35R+1R45X50X35-NTN

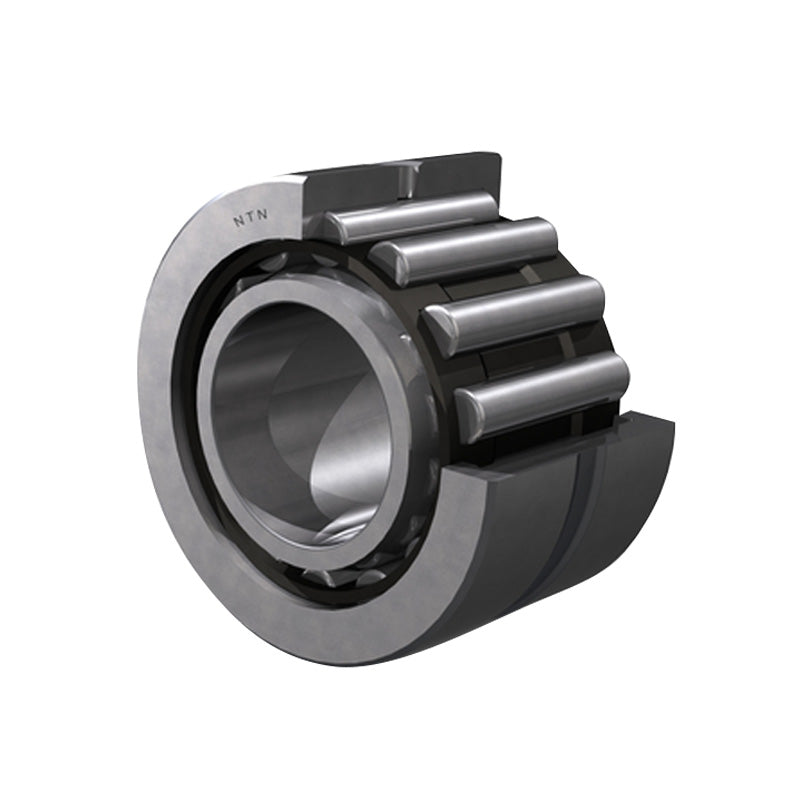

NTN NK50/35R-1R45X50X35 Machined Needle Roller Bearing with Shaft Sleeve 45x62x35mm - Allow 2-3 Days

NTN NK50/35R-1R45X50X35 Machined Needle Roller Bearing with Shaft Sleeve 45x62x35mm - Allow 2-3 Days
Regular price €41,40 ex VAT
Regular price Sale price €41,40 ex VAT
Sale Sold out

In stock

Price Break
3+ €35,08
4+ €33,66
9+ €32,95
19+ €31,89
49+ €31,18
99+ €29,41
499+ €24,80
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 45mm
D - Outside diameter 62mm
C - Width of bearing, drawn cup or outer ring 35mm
F - Under roller diameter 50mm
rs - Minimum fillet radius 0.6mm
s - Max axial offset 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Inner ring reference 1R45X50X35
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 51 kN
C0r - Static load rating 106 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 48mm
Da max - Outer ring maximum shoulder diameter 58mm
ras max - Maximum shaft & housing fillet radius 0.6mm
