SKU: NK5/10TN-EU

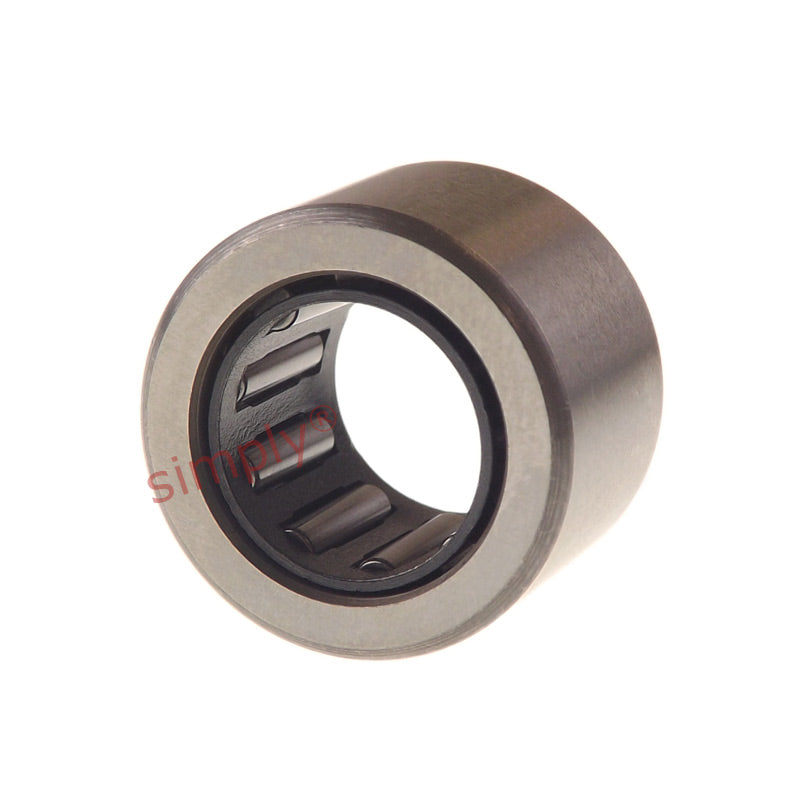

NK5/10TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 5x10x10mm
NK5/10TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 5x10x10mm
Regular price
€7,64
ex VAT
Regular price
Sale price
€7,64
ex VAT
In stock
Price Break
10+
€5,82
19+
€5,49
29+
€5,43
39+
€5,36
49+
€5,30
74+
€5,23
99+
€4,90
199+
€4,84
249+
€4,77
499+
€4,71
999+
€4,58
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 10mm
- Width:
- 10mm
Technical
Technical
| Fw | 5mm |
|---|---|
| D | 10mm |
| C | 10mm |
| Dynamic load C | 2290 N |
| Static load Co | 2000 N |
| Fatigue load limit Pu | 212 N |
| Speed in grease | 36000 rpm |
| Speed in oil | 50000 rpm |
| r1r2 | 0.15mm |
| Da max | 8.8mm |
| ra max | 0.1mm |
| Seal | G5x10x2 |
| Weight | 3.1 g |
