SKU: NK43/30R+1R38X43X30-NTN

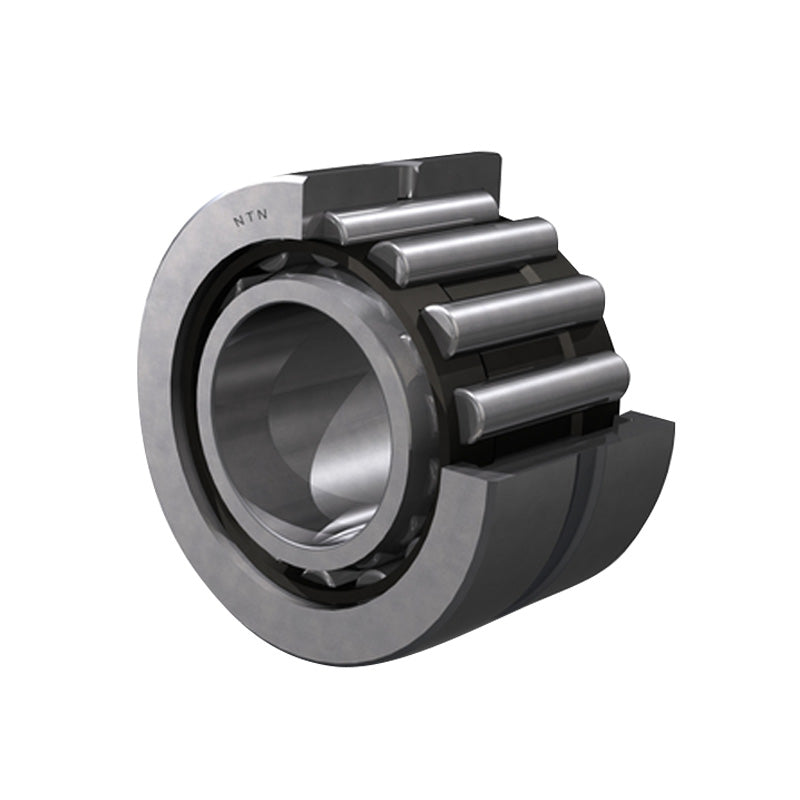

NTN NK43/30R-1R38X43X30 Machined Needle Roller Bearing with Shaft Sleeve 38x53x30mm - Allow 2-3 Days

NTN NK43/30R-1R38X43X30 Machined Needle Roller Bearing with Shaft Sleeve 38x53x30mm - Allow 2-3 Days
Regular price €36,21 ex VAT
Regular price Sale price €36,21 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,68
4+ €29,44
9+ €28,82
19+ €27,89
49+ €27,27
99+ €25,72
499+ €21,69
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 38mm
D - Outside diameter 53mm
C - Width of bearing, drawn cup or outer ring 30mm
F - Under roller diameter 43mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Inner ring reference 1R38X43X30
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 40 kN
C0r - Static load rating 82 kN
N - Grease lubrication limit speed 6500 tr/min
N - Oil lubrication limit speed 9500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 40mm
Da max - Outer ring maximum shoulder diameter 51mm
ras max - Maximum shaft & housing fillet radius 0.3mm
