SKU: NK43/30-MB

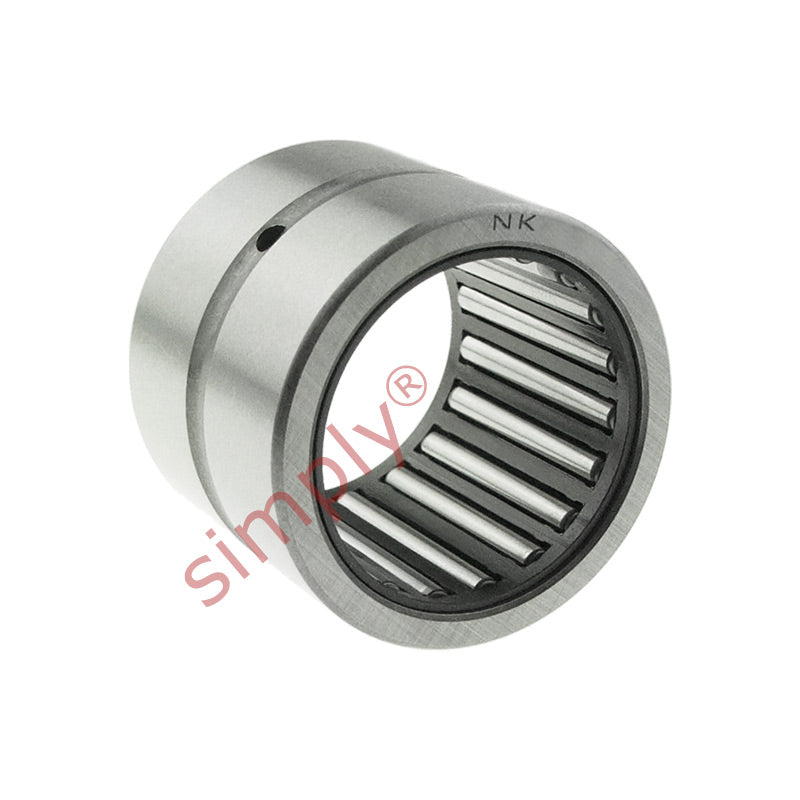

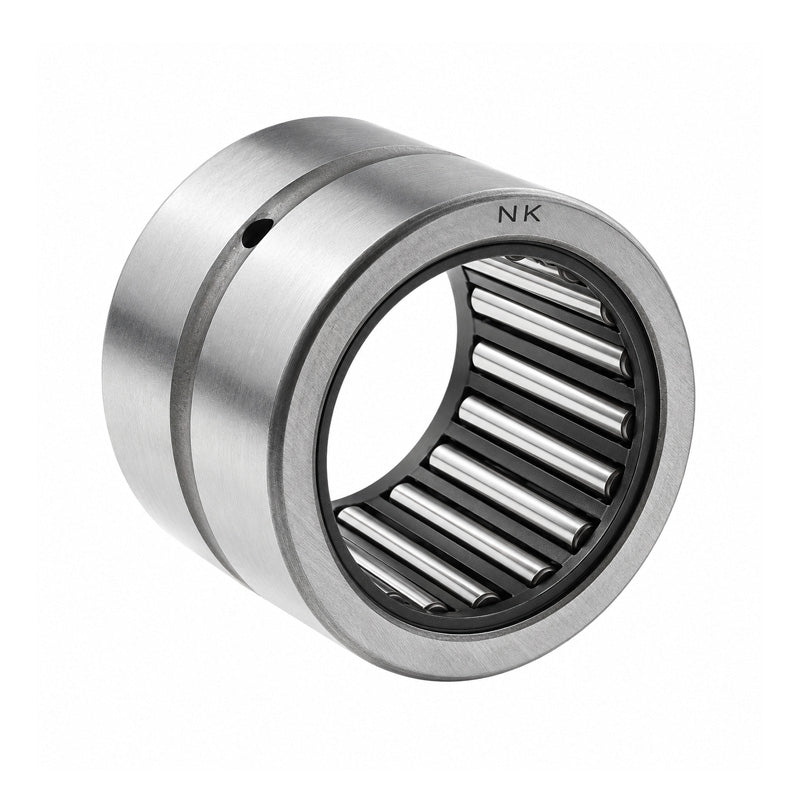

Major Brand NK43/30 Needle Roller Bearing With Flanges without Shaft Sleeve 43x53x30mm
Major Brand NK43/30 Needle Roller Bearing With Flanges without Shaft Sleeve 43x53x30mm
Regular price
€21,02
ex VAT
Regular price
Sale price
€21,02
ex VAT
In stock
Price Break
10+
€16,01
19+
€15,11
29+
€14,93
39+
€14,75
49+
€14,57
74+
€14,39
99+
€13,49
199+
€13,31
249+
€13,13
499+
€12,95
999+
€12,59
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 43mm
- Outside Diameter:
- 53mm
- Width:
- 30mm
Technical
Technical
| Fw | 43mm |
|---|---|
| D | 53mm |
| C | 30mm |
| Dynamic load | 40200 N |
| Static load | 90000 N |
| Fatigue load limit Pu | 11600 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| r1r2 | 0.3mm |
| Da max | 51mm |
| ra max | 0.3mm |
| Seal | G43x53x4 |
| Weight | 130 g |
