SKU: NK42/30-MB

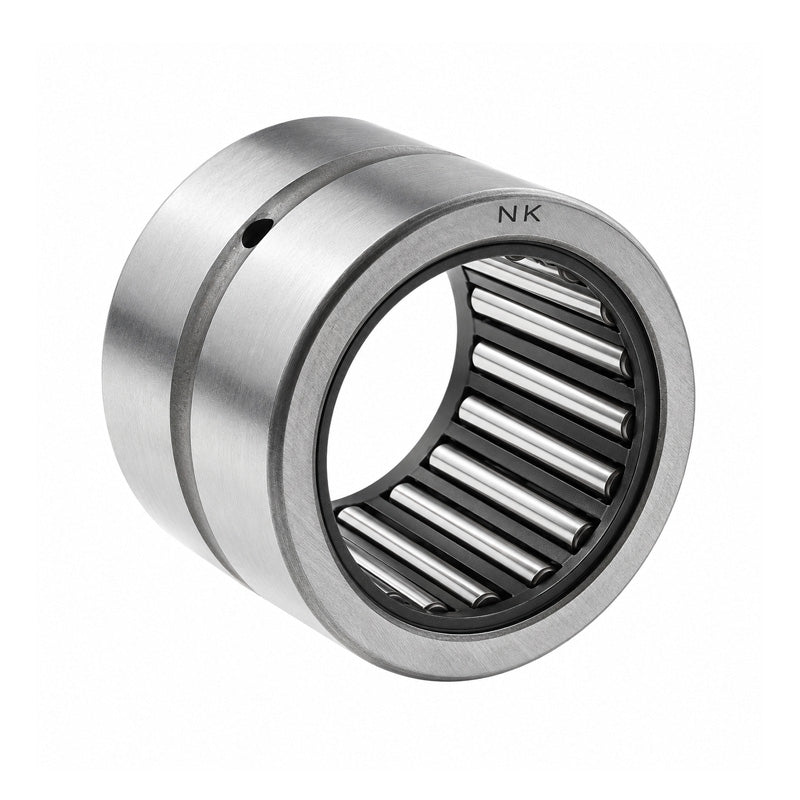

Major Brand NK42/30 Needle Roller Bearing With Flanges without Shaft Sleeve 42x52x30mm
Major Brand NK42/30 Needle Roller Bearing With Flanges without Shaft Sleeve 42x52x30mm
Regular price
€22,16
ex VAT
Regular price
Sale price
€22,16
ex VAT
In stock
Price Break
10+
€16,87
19+
€15,93
29+
€15,74
39+
€15,55
49+
€15,36
74+
€15,17
99+
€14,22
199+
€14,03
249+
€13,84
499+
€13,65
999+
€13,27
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 52mm
- Width:
- 30mm
Technical
Technical
| Fw | 42mm |
|---|---|
| D | 52mm |
| C | 30mm |
| Dynamic load | 39100 N |
| Static load | 86500 N |
| Fatigue load limit Pu | 11200 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| r1r2 | 0.3mm |
| Da max | 50mm |
| ra max | 0.3mm |
| Seal | G/SD42x52x4 |
| Weight | 130 g |
