SKU: NK40/20TN-MB

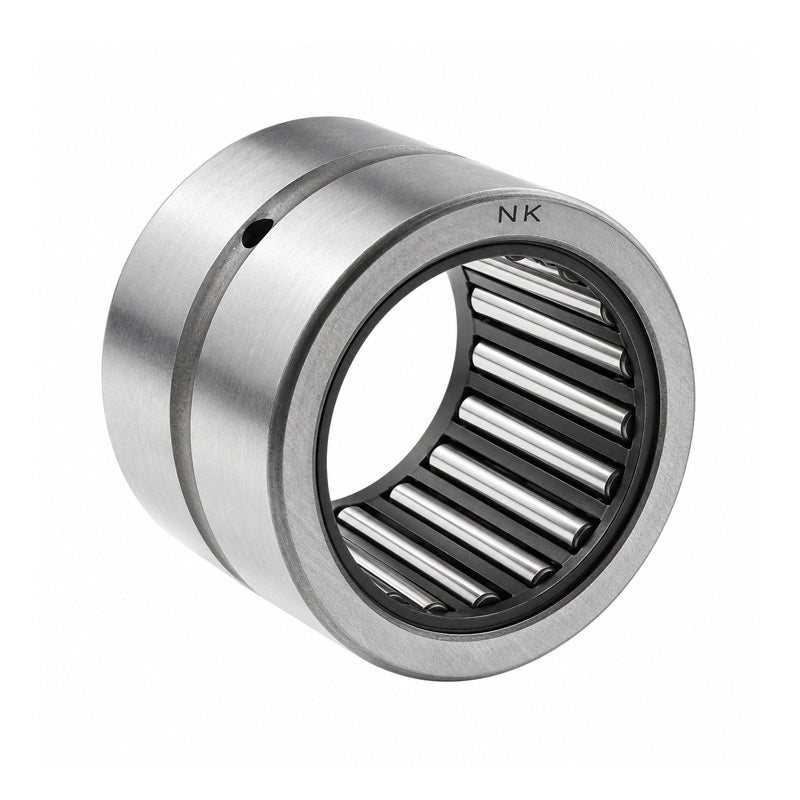

Major Brand NK40/20TN Needle Roller Bearing With Flanges without Shaft Sleeve 40x50x20mm
Major Brand NK40/20TN Needle Roller Bearing With Flanges without Shaft Sleeve 40x50x20mm
Regular price
€23,17
ex VAT
Regular price
Sale price
€23,17
ex VAT
In stock
Price Break
10+
€17,65
19+
€16,66
29+
€16,46
39+
€16,26
49+
€16,06
74+
€15,86
99+
€14,87
199+
€14,67
249+
€14,48
499+
€14,28
999+
€13,88
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 50mm
- Width:
- 20mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 50mm |
| C | 20mm |
| Dynamic load | 26400 N |
| Static load | 51000 N |
| Fatigue load limit Pu | 6400 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| r1r2 | 0.3mm |
| Da max | 48mm |
| ra max | 0.3mm |
| Seal | G/SD40x50x4 |
| Weight | 83 g |
