SKU: NK38/20-MB

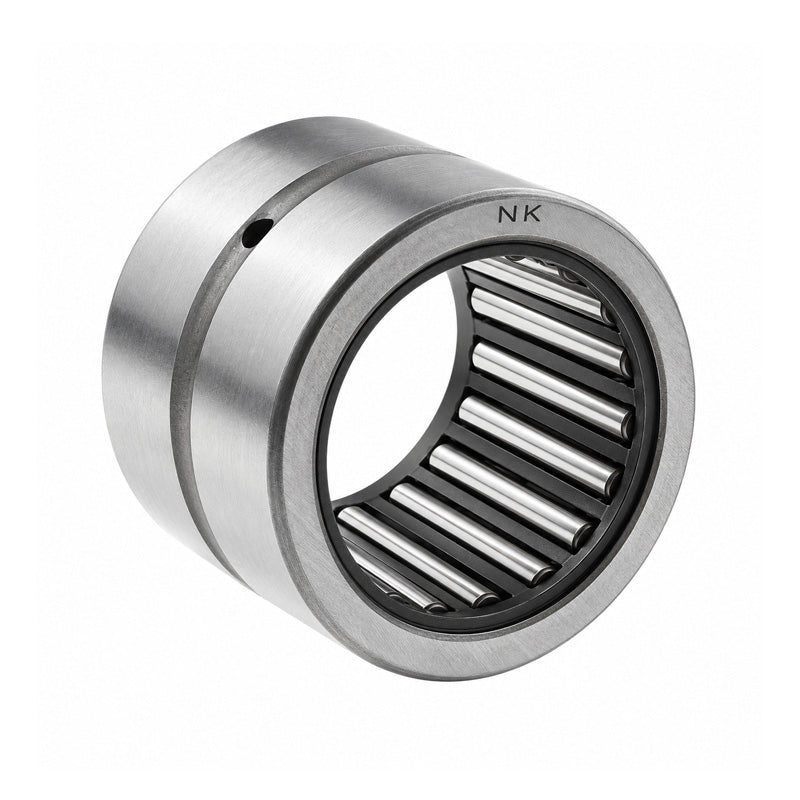

Major Brand NK38/20 Needle Roller Bearing With Flanges without Shaft Sleeve 38x48x20mm
Major Brand NK38/20 Needle Roller Bearing With Flanges without Shaft Sleeve 38x48x20mm
Regular price
€22,14
ex VAT
Regular price
Sale price
€22,14
ex VAT
In stock
Price Break
10+
€16,87
19+
€15,92
29+
€15,73
39+
€15,54
49+
€15,35
74+
€15,16
99+
€14,22
199+
€14,03
249+
€13,84
499+
€13,65
999+
€13,27
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 48mm
- Width:
- 20mm
Technical
Technical
| Fw | 38mm |
|---|---|
| D | 48mm |
| C | 20mm |
| Dynamic load | 25500 N |
| Static load | 49000 N |
| Fatigue load limit Pu | 6200 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| r1r2 | 0.3mm |
| Da max | 46mm |
| ra max | 0.3mm |
| Seal | G/SD38x48x4 |
| Weight | 79 g |
