SKU: NK37/30R+1R32X37X30-NTN

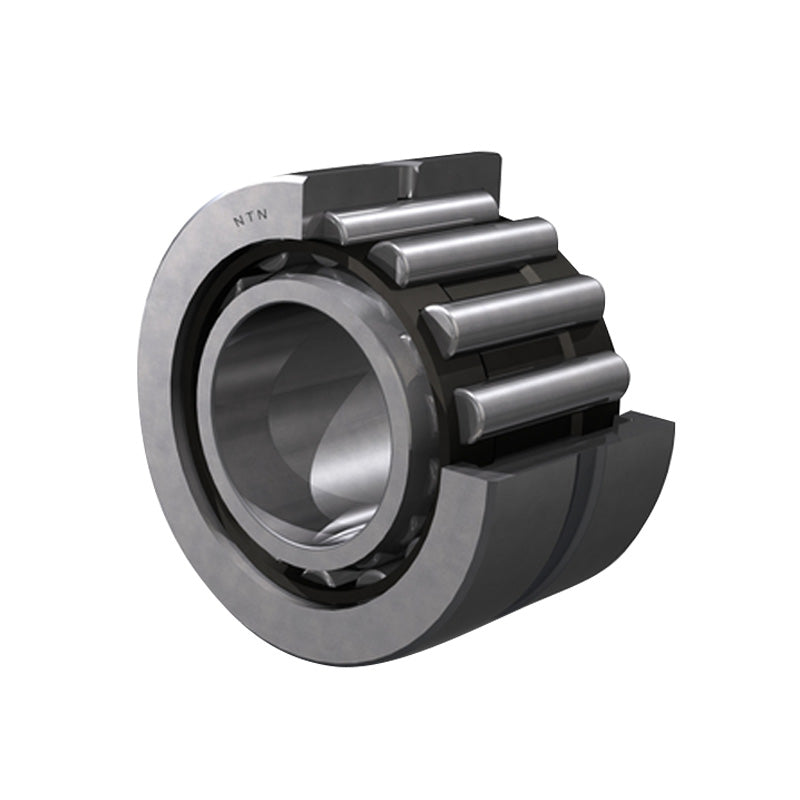

NTN NK37/30R-1R32X37X30 Machined Needle Roller Bearing with Shaft Sleeve 32x47x30mm - Allow 2-3 Days

NTN NK37/30R-1R32X37X30 Machined Needle Roller Bearing with Shaft Sleeve 32x47x30mm - Allow 2-3 Days
Regular price €31,04 ex VAT
Regular price Sale price €31,04 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,29
4+ €25,23
9+ €24,70
19+ €23,90
49+ €23,37
99+ €22,04
499+ €18,59
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 32mm
D - Outside diameter 47mm
C - Width of bearing, drawn cup or outer ring 30mm
F - Under roller diameter 37mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Inner ring reference 1R32X37X30
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 36.5 kN
C0r - Static load rating 69.5 kN
N - Grease lubrication limit speed 7500 tr/min
N - Oil lubrication limit speed 11000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 34mm
Da max - Outer ring maximum shoulder diameter 45mm
ras max - Maximum shaft & housing fillet radius 0.3mm
